Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Model No.: Line Pipe
Application: Structure Pipe, Fluid Pipe, Oil Pipe, Boiler Pipe, Chemical Fertilizer Pipe, Gas Pipe, Hydraulic Pipe, Drill Pipe
Section Shape: Round
Surface Treatment: Black
Usage: Pipeline Transport, Special Purpose, Oil&Gas Well Drilling, Machinery Industry, Chemical Industry, Thermal Equipment, Mining, Construction & Decoration
Technique: Hot Rolled
Material: Carbon Steel
Packaging: Bundled or as per buyer's requirements
Place of Origin: Cangzhou,China
Supply Ability: 1000mtr/month
HS Code: 73043990
Port: Tianjin New Port,Beijing Air Port,Zhengzhou Train Station

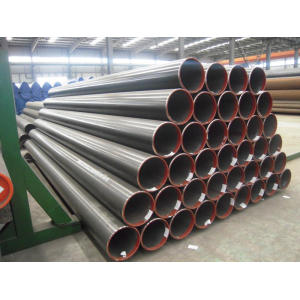

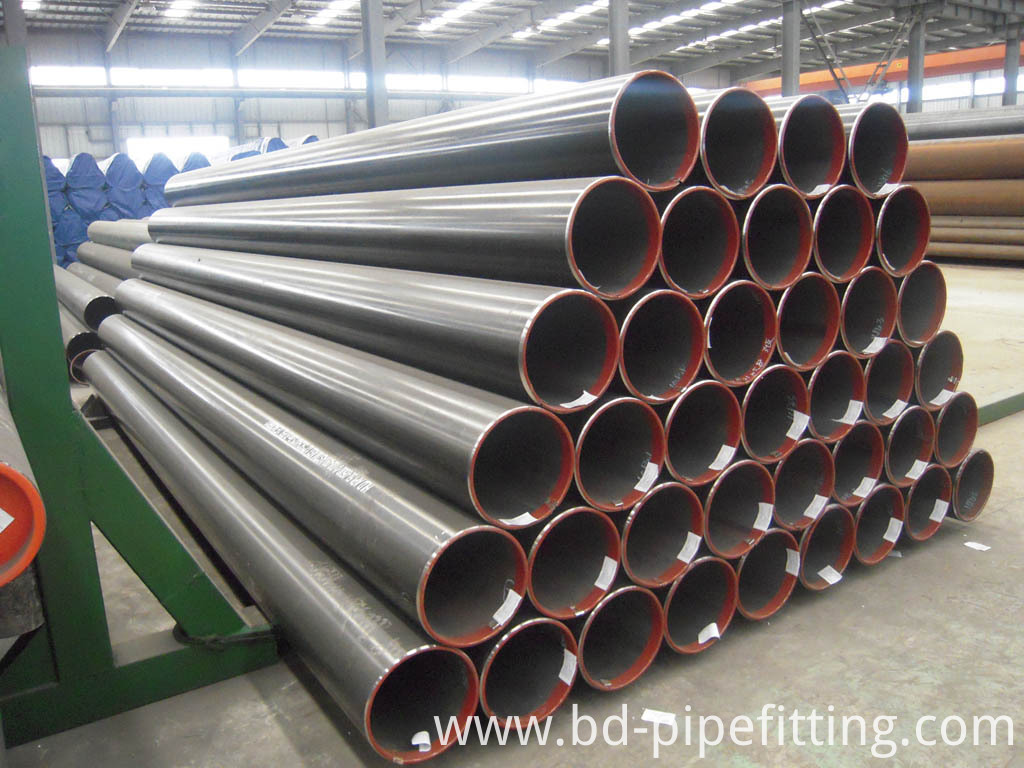

API 5L Seamless Steel Line Pipe
API 5L Line Pipe Physical Properties
Steel Line Pipe grade designations come from API Spec 5L Specification for Line Pipe. Standard Line Pipe has grade designation A and B. Stronger grades have the designation X followed by the specified minimum yield strength of the pipe steel, measured in kilopounds per square inch (abbreviated ksi), e.g. X60 for pipe having a minimum yield strength of 60 ksi.
Line pipe (Api5l Steel Pipe) mechanical testing usually omits Reduction of Area (RA) measurement reporting, and Charpy V-Notch (CVN) testing. This prevents use of this pipe as body material above 36 ksi yield strength for API Spec 6A equipment without retesting for Reduction of Area, and in the case of low temperature service, Charpy V-Notch testing as well.
CAUTION: Do not confuse pipe manufactured to meet ASTM A106 Grade A or B as interchangeable with API 5L Grade A or B without close observation of the mill test reports. The two pipe specifications overlap, but vary. Pipe may or may not meet both specs.
API 5L X52
Grade X52 indicates 52000 PSI minimum yield strength and 66000 PSI minimum ultimate tensile strength.
API Standard Specification for Line Pipe
Specifications for API 5L adhere to the International Organization for Standardization ISO 3183, standardizing pipeline transportation systems within the materials, equipment and offshore structures for natural gas, petroleum, and petrochemical industries. When authoring the standards, the technical committee recognized that there are two basic Product Specifications Levels (PSL) of technical requirements and therefore developed PSL 1 and PSL 2. PSL 1 is a standard quality for line pipe where PSL 2 contains additional chemical, mechanical properties, and testing requirements.
Grades covered by this specification are A25, A, B and "X" Grades X42, X46, X52, X56, X60, X65, X70, and X80. The two digit number following the "X" indicates the Minimum Yield Strength (in 000's psi) of pipe produced to this grade.
