Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Model No.: Seamless Pipe
Certification: API, CE
Application: Structure Pipe, Oil Pipe, Boiler Pipe, Gas Pipe, Hydraulic Pipe, Drill Pipe
Section Shape: Round
Surface Treatment: Black
Usage: Pipeline Transport, Special Purpose, Oil&Gas Well Drilling, Machinery Industry, Thermal Equipment, Mining, Construction & Decoration
Technique: Hot Rolled
Material: Alloy Steel
Packaging: Bundled or as per buyer's requirements
Place of Origin: Cangzhou,China
Supply Ability: 1000mtr/month

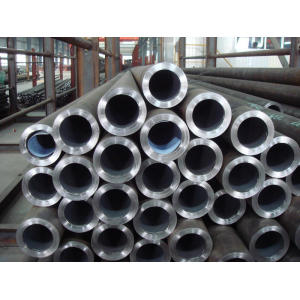

We can help supply all of the ASTM A335 P12 Seamless Pipe or linepipe supplies that your company needs for use in the oil or natural gas industries. High strength low alloy steel specifications for these pipes regulate usage for standard ASTM A335, ASTM A333 and ASTM A213 pipes. ASTM A335 P12 Seamless Pipe is the part of ASTM A335, the pipe shall be suitable for bending, flanging, and similar forming operations, and for fusion welding.
ASTM A335 P91 high pressure boiler seamless alloy pipe Chemical Composition
ASTM A335 P91 high pressure boiler seamless alloy pipe Mechanical Property
|Material||Tensile Strength,Mpa||Yield Strength,Mpa||Elongation/%|
|a335 p91||Min585||Min415|| Max20 |

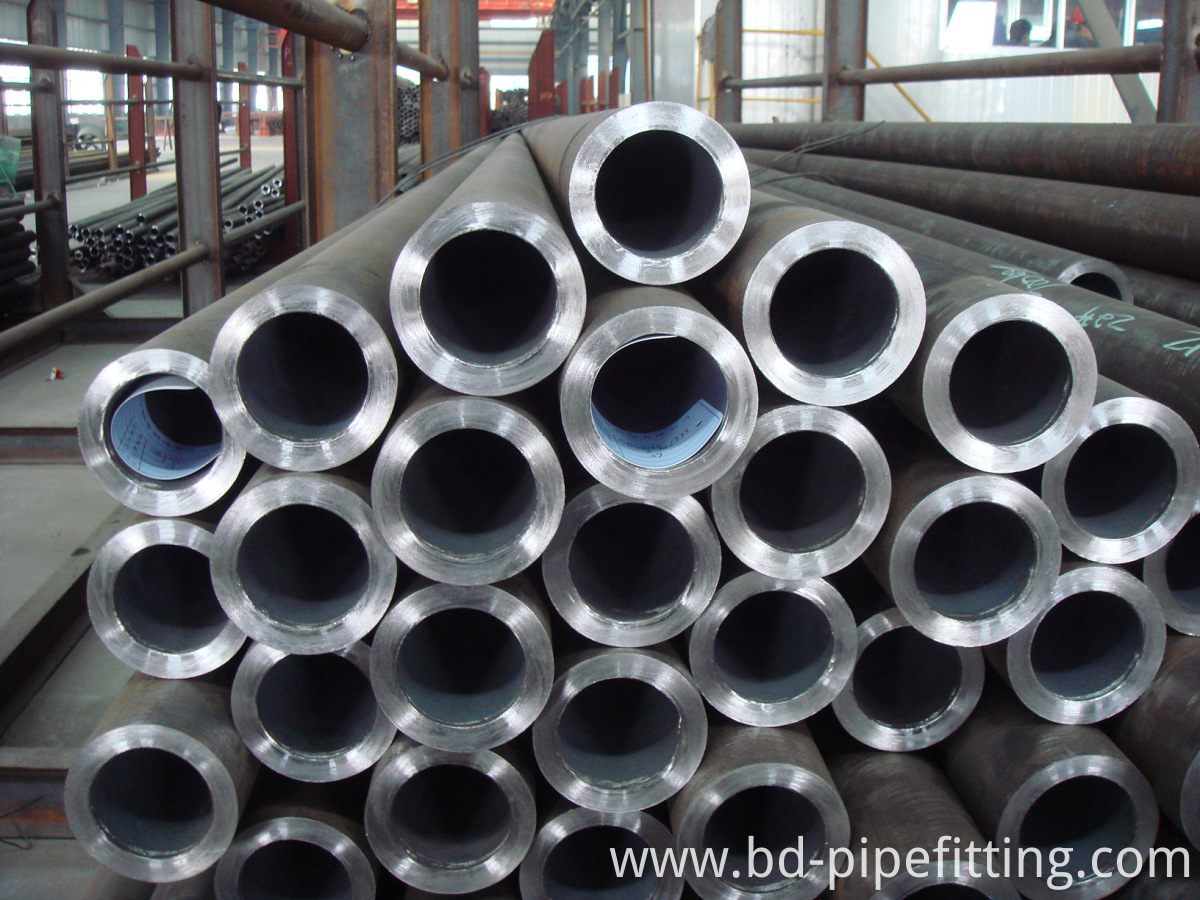

There are various types of seamless alloy steel pipes/tubes to meet or exceed your unique
Alloy steel pipe
Standard & Material:
GB5310-2013 Standard: 20G,25MnG, 15MoG,15CrMoG, 20MoG, 12CrMoG, 12Cr2MoG,12Cr1MoVG, 12Cr2MoWVTiB, 10Cr9Mo1VNb, 15CrMoG, 10CrMo910,
ASTM A209M/AS-209M Standard A209T1/SA209 T1, A209 T1b/SA-209 T1b, A209T1a/SA209 T1a
ASTM A213M/ASME SA 213 M Standard: T2, T5, T9, T11, T12, T22, T23, T24, T91, T911, T92, T122
ASTM A335/ASME SA335 Standard: P1, P2, P5,P5b, P5c, P9, P11, P12,P21,P22,P23, P24, P91, P92
ASTM A519 Standard: 4118, 4130,4135,4137,4140
ASTM A691 Standard GRADE 91, CM65, CM70, CM75, CMSH70, CMS75, CMSH80,
ASTM A691 Standard GRADE 1/2 Cr, GRADE 1CR, GRADE 1 1/4 CR, 2 1/4 Cr, 3CR, 5CR, 9 CR
DIN17175 Standard: ST35.8, ST45.8, 15Mo3, 13CrMo44, 10CrMo910, 14MoV63,12Cr1MoV
EN10216-2 Standard: P195GH, P235GH, P265GH, 13CrMo4-5, 10CrMo9-10, 16Mo3, 10CrMo5-5, X10CrMoVNb9-1
JIS G3458 Standard: STPA12, STPA20, STPA22, STPA23, STPA24, STPA25, STPA26
JIS G3441 Standard:SCR420 TK,SCM415 TK, SCM418 TK, SCM420TK, SCM430TK, SCM435TK, SCM440TK.
NF A49-213/215 Standard: TU15D3, TU13CD4-04, TU10CD910, TUZ10CD505
BS3059 Standard: S1-622-440, S2-622-440, S1-622-490, S2-622-490, S1-629-470, S2-629-470, S2-629-590
BS3604Standard: HFS625 CFS625
Alloy Steel Pipe Size:
O.D:6-760mm W.T:1-80mm Fixed Length: 5.8m, 6m, 11.8m, 12m, or random length as required.
All products are industry-standard conforming to or exceeding API, ASTM, ASME, ANSI and other national and international standards.
Chrome Moly pipe has become a standard in the power generation industry and the petro-chemical industry, not only because of its tensile strength, corrosion resistance and high-temperature strength, but also for its cost-effectiveness. Grades P-11, P-22 - P-91 & P-92 are prevalent grades for the power industry, while P-5 & P-9 are the major refinery processing grades utilized.
Pipes :- ASTM A335 GR P5 | GR P9 | GR P11 | P12 | GR P22 | GR P91 | P92.
Size Range: 1/2" - 24"
Schedules: 20, 30, 40, Standard (STD), 60, Extra Heavy (XS), 80, 100, 120, 140, 160, XXS
Tubes :- ASME SA213 Grade T11, T12, T5, T9, T22, T91, T92
Size Range: 12.7MM OD TO 168.7 MM OD
Thickness: 2MM TO 16MM THK
More Details about A106 Grades B/C
NPS 1/8" to NPS 48"
Wall thickness: Schedules 10 through 160, STD, XS, XXS.
*Commonly requested unscheduled walls up to 4" and certified minimum wall items
Chemical Properties %
MECHANICAL PROPERTIES – TENSILE REQUIREMENTS
· Testing Requirements for seamless A106 Carbon Steel Pipe
o Hydrostatic Testing: Inspection test pressures produce a stress in the pipe wall equal to 60% of specified minimum yield strength (SMYS) at room temperature. Maximum pressures are not to exceed 2,500 psi for NPS 3 and under, and 2,800 psi for the larger sizes. Pressure is maintained for no less than 5 seconds.
o Mechanical Tests:
§ Tensile Test: Either transverse or longitudinal are acceptable for NPS 8 and larger
§ Tensile tests smaller than NPS 8: Longitudinal testing only
§ Flattening Test: NPS 2 and larger
§ Bending Test (cold): NPS 2 and under
6 and larger
200 or less
o Number of Tests: One tensile test per 200 lengths.
· Permissible Variations in Dimension
o Wall thickness: The minimum wall thickness at any point shall not be more than 12.5% under the nominal wall thickness specified.
o Weights per foot: The weight of any individual length shall not vary more than 10% over and 3.5% under that specified. NOTE – NPS 4 and smaller are weighed in lots. Larger sizes are weighted by individualo Outside diameter: Shall not vary from standard specified below at any point.
· Lengths of A106 seamless carbon steel pipe
Lengths of Bangdong Pipeline Tubular Products A106 seamless carbon steel pipe must be specified on order. No [joiners" are permitted unless otherwise specified. If no definite lengths are required, the following practice applies:
o Single random – 16` – 22` (5% may be 12` – 16`)
o Double random – Minimum length is 22`. Minimum average is 35` (5% may be between 16` – 22`)
· Marking Requirements
Rolled, die stamped, or paint stenciled (manufacturer`s option).
o Manufacturer`s name, brand, or trademark
o A106 A, A106 B, or A106 C
o Hydro-static test pressure and/or NDE, or NH if neither is specified
o Size, length, weight per foot (NPS 4 and larger)
o ANSI schedule number or weight class or wall thickness
o Additional [S" if tested supplementary requirements
Seamless Pipes manufacturing using Hot Extrusion facility up to 2"NB
Draw bench facility up to 8" NB
Solution Annealing Heat Treatment facility up to 8" NB
Various grades offered : Austenitic , Super Austenitic ,Duplex ,Super Duplex Stainless Steels
Stabilization Heat Treatment Facility for Stabilized Grades
Stainless Steel 3LPE/LPP Coated Pipes
Ability to manufacture Stainless Steel pipes as per API 5LC with 3LPE/3LPP Coating facility. Pipes can be supplied as per Customer specification also.
We have good stock of Alloy Steel Pipe , Seamless Pipe
