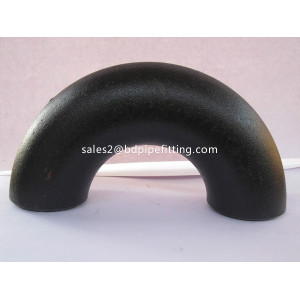

Alloy Steel Pipe Fittings 180 Degree Elbow

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 15 Days

Basic Info

Model No.: 180 Degree Elbow

Connection: Welding

Shape: Equal

Head Code: Round

Angle: 60 Degree

Wall Thickness: Sch40s

Material: Alloy

Technics: Casting

Certification: ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API

Color: Black

Additional Info

Packaging: Wooden Cases or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079300

Port: Tianjin New Port,Beijing Air Port,Zhengzhou Train Station

Product Description

Alloy Steel Pipe Fittings 180 Degree Elbow

180 DEGREE LONG RADIUS ELBOW MANUFACTURERS

180 DEGREE LONG RADIUS ELBOW MANUFACTURERS, BUTTWELD 180 DEG. LONG RADIUS ELBOW, ASTM A403 SS 180 DEG LONG RADIUS ELBOWS, 180 DEGREE LONG RADIUS ELBOW DIMENSIONS, ALLOY STEEL 180 DEGREE LONG RADIUS BUTTWELD Pipe Elbow, NICKEL ALLOY 200 180 DEGREE LONG RADIUS ELBOW, MONEL 180 DEG. BUTTWELD LONG RADIUS ELBOW, 304 SS 180 DEGREE LONG RADIUS PIPE ELBOW, HIGH QUALITY 180° LONG RADIUS PIPE ELBOW MANUFACTURER OF IN China.

GLOBAL SUPPLIER OF ANSI B16.9 180 DEG LONG RADIUS PIPE FITTINGS ELBOW, STEEL LONG RADIUS PIPE ELBOW WHOLESALER, Asme B16.9 180 DEGREE LONG RADIUS ELBOW, BUTTWELD ELBOW 180 LONG RADIUS DEGREE, BUTT WELD LONG RADIUS 180 DEGREE ELBOWS, 180° LONG RADIUS ELBOW DEALER IN INDIA, ASME B16.9 180 DEG LONG RADIUS ELBOW, SCH40 180 DEGREE LONG RADIUS ELBOW.

ASME B16.9 180 Degree Long Radius Elbow Manufacturers

ASME B16.9 180 DEGREE LONG RADIUS ELBOW MANUFACTURER


A 180º elbow, also known as a "180 bend" or "180 ell", is commonly used in Petro-Chemical Industry, Oil and Gas Industry , Nuclear Industry, Pulp &Paper Indusry, Research & Development , Mega Projects & Defense & Development Industries. In fact wing to the special grade of steel 90 Degree Elbows are used for all critical applications.

The product differentiation is based on the premier finish of 180 Degree Elbow with minimum burr at the edge .The v shape formation for perfect welding and fabrication of the fittings in mega projects in oil and gas industry for long life of the product.


STANDARD BUTTWELD 180 DEGREE LONG RADIUS PIPE ELBOW SPECIFICATION

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : Seamless Elbow ( 1/2″~24″), ERW / Welded / Fabricated Elbow (1/2″~48″)

Type : Seamless / ERW / Welded / Fabricated

Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Form : 180 Deg Long Radius Elbow.


MATERIAL & GRADES OF BUTTWELD 180 DEGREE LONG RADIUS ELBOW :


Alloy Steel Buttweld LR Elbow (Long Radius Elbow) :
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Stainless Steel Buttweld LR Elbow (Long Radius Elbow) :
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Carbon Steel Buttweld LR Elbow (Long Radius Elbow) :
Astm A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel LR Elbow (Long Radius Elbow) : ASTM A420 WPL3, A420 WPL6

180 DEGREE LONG RADIUS ELBOW DIMENSION :

ASME B16.9 180 Degree Long Radius Elbow Manufacturer
Nom.
Pipe
Size
Pipe
Sched.
or No.
Center-
to-Center
Dimen.
Back-
to-
Face
Outside
Dia.
Inside
Dia.
Wall
Thick.
Approx.
Weight
(lb.)
H J OD ID T
STANDARD WEIGHT
1/2 40 3 1 7/8 0.840 0.622 0.109 0.3
3/4 40 2 1/2 1 11/16 1.050 0.824 0.113 0.3
1 40 3 2 3/16 1.315 1.049 0.133 0.7
1 1/4 40 3 3/4 2 3/4 1.660 1.380 0.140 1
1 1/2 40 4 1/2 3 1/4 1.900 1.610 0.145 1.5
2 40 6 4 3/16 2.375 2.067 0.154 3
2 1/2 40 7 1/2 5 3/16 2.875 2.469 0.203 6
3 40 9 6 1/4 3.500 3.068 0.216 9
3 1/2 40 10 1/2 7 1/4 4.000 3.548 0.226 12
4 40 12 8 1/4 4.500 4.026 0.237 17
5 40 15 10 5/16 5.563 5.047 0.258 28
6 40 18 12 5/16 6.625 6.065 0.280 46
8 40 24 16 5/16 8.625 7.981 0.322 90
10 40 30 20 3/8 10.750 10.020 0.365 156
12 36 24 3/8 12.750 12.000 0.375 236
14 30 42 28 14.000 13.250 0.375 294
16 30 48 32 16.000 15.250 0.375 404
18 54 36 18.000 17.250 0.375 512
20 20 60 40 20.000 19.250 0.375 617
24 20 72 48 24.000 23.250 0.375 886
EXTRA STRONG
1/2 80 3 1 7/8 0.840 0.546 0.147 0.5
3/4 80 2 1/2 1 11/16 1.050 0.742 0.154 0.5
1 80 3 2 3/16 1.315 0.957 0.179 1
1 1/4 80 3 3/4 2 3/4 1.660 1.278 0.191 1.5
1 1/2 80 4 1/2 3 1/4 1.900 1.500 0.200 2
2 80 6 4 3/16 2.375 1.939 0.218 4
2 1/2 80 7 1/2 5 3/16 2.875 2.323 0.276 7.5
3 80 9 6 1/4 3.500 2.900 0.300 12
3 1/2 80 10 1/2 7 1/4 4.000 3.364 0.318 17
4 80 12 8 1/4 4.500 3.826 0.337 23
5 80 15 10 5/16 5.563 4.813 0.375 40
6 80 18 12 5/16 6.625 5.761 0.432 67
8 80 24 16 5/16 8.625 7.625 0.500 138
10 60 30 20 3/8 10.750 9.750 0.500 215
12 36 24 3/8 12.750 11.750 0.500 300
14 42 28 14.000 13.000 0.500 376
16 40 48 32 16.000 15.000 0.500 524
18 54 36 18.000 17.000 0.500 676
20 30 60 40 20.000 19.000 0.500 824
24 72 48 24.000 20.000 0.500 1183

ASME B16.9 ELBOW

ASME B16.9 180 Degree Long Radius Elbow Manufacturer
DIMENSIONAL TOLERANCES – ELBOWS
For all fittings Elbows 90/45 deg 180° Returns
Nominal Pipe Size (NPS) Outside Ø
at Bevel
Inside Ø
at End
Wall Thickness
t / t1
Center to End Dim. A-B-C-M Center to Center Dim.
O
Back to Face Dim.
K
Align- ment of Ends
U
1/2 a 2 1/2 1 0,8 Not 2 7 7 1
3 a 3 1/2 1 1,6 less 2 7 7 1
4 +2 -1 1,6 than 2 7 7 1
5 a 6 +3 -1 1,6 87,50% 2 7 7 1
8 2 1,6 of nominal 2 7 7 1
10 +4 -3 3,2 tickness 2 7 7 2
12 a 18 +4 -3 3,2 3 10 7 2
20 a 24 +6 -5 4,8 3 10 7 2
26 a 30 +7 -5 4,8 3 -.. -.. -..
32 a 48 +7 -5 4,8 5 -.. -.. -..
Angularity Tolerances
ND Max off angle Max off plane
Q P
1/2 a 4 1 2
5 a 8 2 4
10 a 12 3 5
14 a 16 3 7
18 a 24 4 10
26 a 30 5 10
32 a 42 5 13
44 a 48 5 20
Our Butt Weld Pipe Fitting elbow in stock :

A234 WP11 Elbow
A234Wpb lr Elbow
A234wpb Sr Elbow
A860 WPHY 60 elbow
A860 WPHY 56 elbow
A420 WPL6 Pipe Fitting elbow
A234 WP9 Elbow

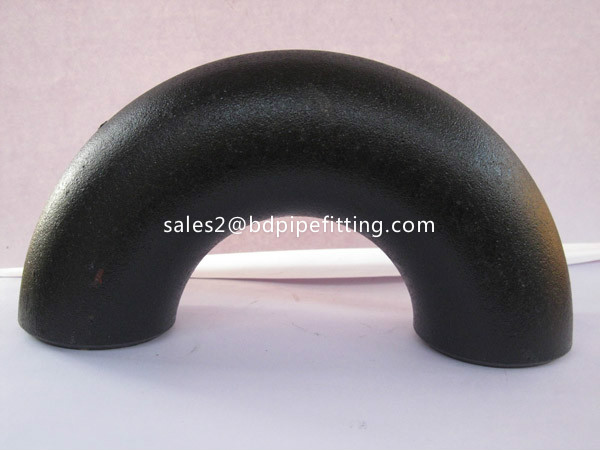

180degree lr elbow

Bangdong Supply Sr Alloy Steel Elbow,High Pressure Alloy Steel Elbow,Lr 90 Degree Elbow.Alloy Steel Pipe Fittings are the best preferred fittings for installation of pipelines. All these fittings are made from the best grades of alloy steel with the strength to sustain highly hazardous chemicals and gases. These are best suited for sensitive applications in power generation and nuclear industries to handle toxic materials that are harmful to human and animals if leaked. Ensure easy and quick installation of the pipelines, these pipe fittings are available in wide sizes and pressure ratings with choice in surface finish.


Available As:
Forged
Threaded
Buttweld
Seamless

Technical Specifications:
Thickness : SCH10-XXS
Size : 1/2NB- 600NB
Surface finish : Electro-galvanized, hot galvanized

Construction materials :
Alloy Steel Grades : ASTM A234 Grade WP1, WP12 CL1, WP12 CL2, WP11 CL1, WP11 CL2, WP11 CL3, WP22 CL1, WP22 CL3, WP5 CL1, WP5 CL3, WP9 CL1, WP9 CL3, and WP91
Standard Material Grades In Alloy Steel : ASTM A182 F1, F5, F 5a, F9, F91, F11 Class 1, F12 Class 1, F22 Class 1

USP :
Rust proof finish
Zero breakage during operations
Can resistant high temperature
Easy to install
Ensure tight joints
Chemically inert
Stability in dimensions
Quick installation of pipelines in any direction
Continuous and smooth flow
Low friction loss
Smooth inner surface

Use For :
Installing pipelines in critical industrial sites involving hazardous materials

Application Areas :
Power plants
Nuclear power sites

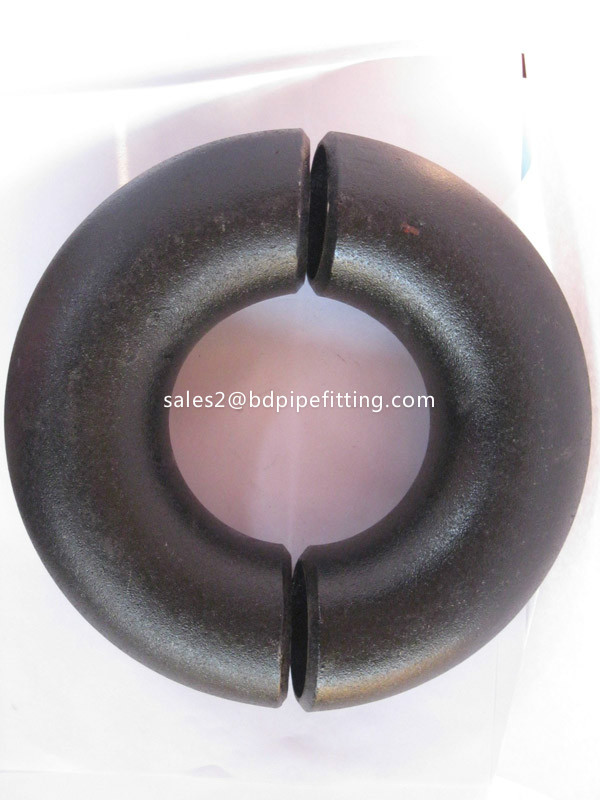

Alloy pipe fitting

Looking for ideal Sr Alloy Steel Elbow Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the High Pressure Alloy Steel Elbow are quality guaranteed. We are China Origin Factory of Lr 90 Degree Elbow. If you have any question, please feel free to contact us.

Product Categories : Butt Weld Pipe Fitting > Alloy Steel Pipe Fitting
