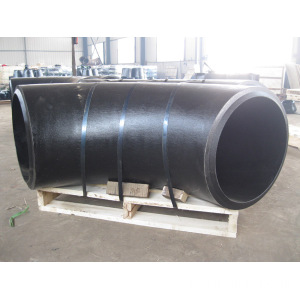

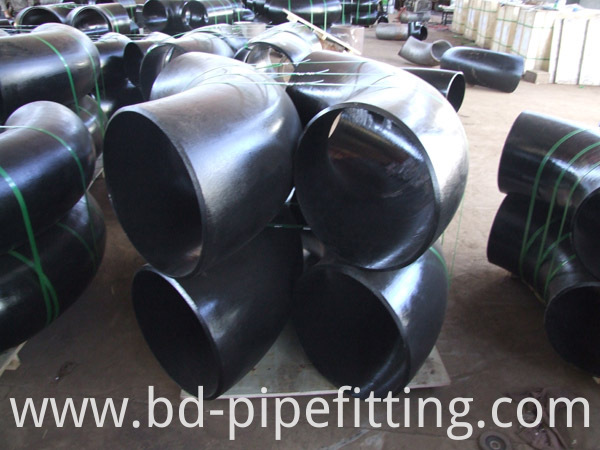

ASTM A420 WPL3/WPL6 Butt Weld Fittings Elbow

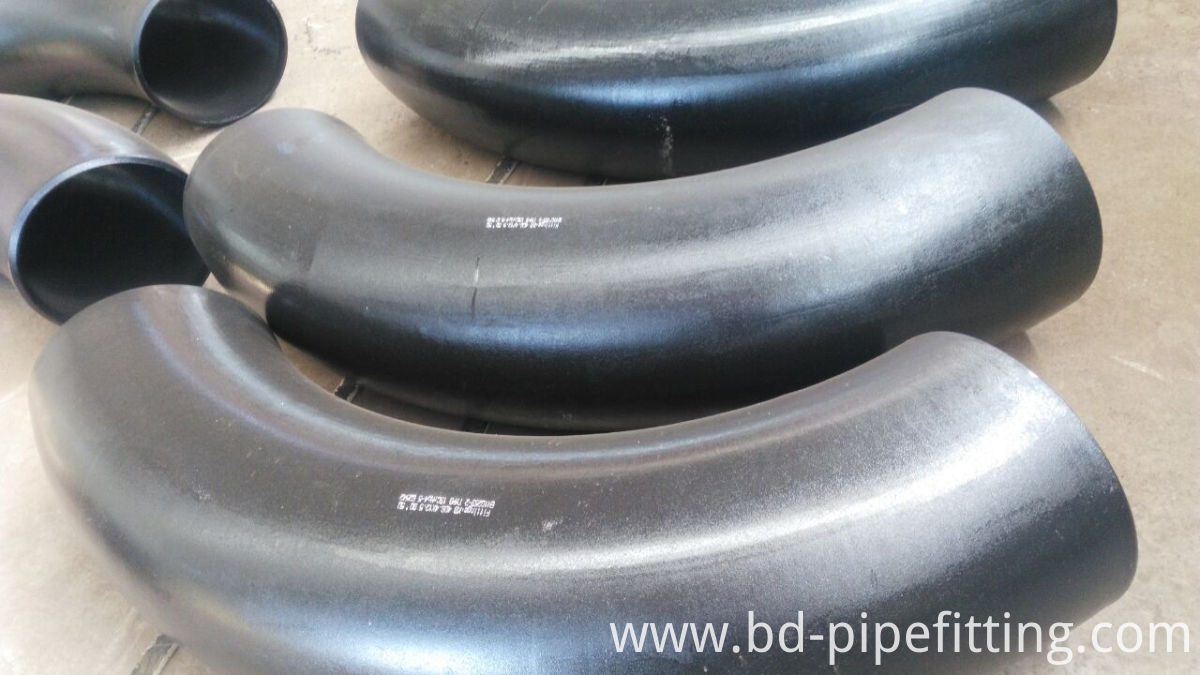

ASTM A420 WPL3 / WPL6 / WPL9 But Weld Fittings Elbow 45 Deg 90 Deg Elbow 10" SCH80



Specifications

1.Butt weld fittings
2.sch5s-schxxs
3.ISO9001,ISO9000
4.Market:America,Africa,Middle East,Southeast of Asia

 Type
Butt weld fittings elbow ,reducer,tee,stub end ,cap

Standard
ASME/ANSI B16.9

Size
1/2``~48``(Seamless);16``~72``(Welded)
Wall thickness
Sch5~Sch160XXS

Manufacturing process
Push, Press, Forge, Cast, etc.

Material
Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel

1)  wall thickness: 1 / 2 "NPS Sch5S to 24" OD x 30mm
2)  wall thickness: from 10 "to 58" OD x 30mm
Manufacturing standards:
1)ASTM ASME A/SA 403 MSS SP43 & SP75  ANSI B16.9  ANSI B16.28  ASTM A815   ASTM B363 B366
2)DIN2605 DIN2615 DIN2616 DIN2617
3)GB12459 GB13401
4)JIS2313
Process: stainless steel, nickel copper used cold, Mandrel molding (elbow can minimize thickness thinning) Using carbon steel, and other thermal processing, forming within Mandrel

Dimensions: seamless 1 / 2 "-20" (DN15 - DN500), a slit 1 / 2 "-48" (DN15 - DN1200)
Standards:GB/T12459, GB/T13401,SH3408,SH3409,HG/T21635,
      HG/T21631, Asme B16.9 ,MSS SP-43,DIN 2605,JIS B2313
Thickness:SCH5S-SCH160
material: stainless steel, nickel copper, carbon steel and low alloy steel, alloy steel

Buttweld pipe fittings comprises of long radius elbow, Concentric Reducer, eccentric reducers and Tees.They are an important part of industrial piping system to change direction, branch off or to mechanically join equipment to the system. Buttweld fittings are sold in nominal pipe sizes with specified pipe schedule. BW fitting`s dimensions and tolerances are defined as per ASME standard B16.9.
Butt Weld fittings are also called Welded Pipe fittings. These welded fittings in carbon steel and stainless steel offer many advantages compared to threaded and socketweld fittings. The later are only available up to 4-inch nominal size whereas butt weld fittings are available in sizes from ½" to 102".

Elbow: Fittings that change direction in a piping system are called elbows. The directional change is given in degree such as 45 or 90. Long radius 90 degree elbow has the center line of elbow at 1.5 x  NPS from eblow end. 3D elbow has center line at 3 x NPS from elbow end.


 Application Areas:
Gas Plants
Power Plants
Chemical Plants
Petroleum Industry
Metallurgy Industry
Ship-building Industry
Construction Industry
Grades:
Stainless Steel: ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
Carbon Steel: ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
Alloy Steel: Astm A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Other Metals offered for making Butt Weld Pipe Fittings: Monel, Nickle, Inconel, Hastelloy, Copper, Brass, Titanium
We are offering wide range of Butt Weld Fittings like:
Stainless Steel Butt Weld Fittings
Hastelloy Butt Weld Fittings
Alloy-20 Butt Weld Fittings
Duplex Butt Weld Fittings
Alloy Steel Butt Weld Fittings.

Features:
Made of high grade raw material
Easy fitting
Long lasting
Corrosion resistance
Dimensionally accurate
-Reasonable price.

Delivery:
As per the client's schedule.

Customization:
 Deliver customized products.

Packaging:
Durable and safe packaging.

If you require stock for wpb elbow , call me freely .

If you require Large Diameter Fitting , A420 Wpl6 Pipe Fitting , A860 Wphy52 Elbow call me freely .

We have good stock of Asme B16.9 LR Elbow , A234Wp9 Elbow



Product name : carbon steel 45º elbow Item : buttweld-Elbow Details : Nominal Diameter  Outside Diameter  at Bevel  Center to End Center to Center Back to Face 45°Elbow           90°Elbow 180°Elbow B        A       O        K DN NPS Series A Series B Long  Radius Long  Radius Short   Radius Long  Radius Short   Radius Long  Radius Short   Radius 15 1/2 21.3 18 16 38 - 76 - 48 - 20 3/4 26.9 25 19 38 - 76 - 51 - 25 1 33.7 32 22 38 25 76 51 56 41 32 1.1/4 42.4 38 25 48 32 95 64 70 52 40 1.1/2 48.3 45 29 57 38 114 76 83 62 50 2 60.3 57 35 76 51 152 102 106 81 65 2.1/2 76.1(73) 76 44 95 64 190 127 132 100 80 3 88.9 89 51 114 76 229 152 159 121 90 3.1/2 101.6 - 57 133 89 267 178 184 140 100 4 114.3 108 64 152 102 305 203 210 159 125 5 139.7 133 79 190 127 381 254 262 197 150 6 168.3 159 95 229 152 457 305 313 237 200 8 219.1 219 127 305 203 610 406 414 313 250 10 273.0 273 159 381 254 762 508 518 391 300 12 323.9 325 190 457 305 914 610 619 467 350 14 355.6 377 222 533 356 1067 711 711 533 400 16 406.4 426 254 610 406 1219 813 813 610 450 18 457.2 478 286 686 457 1372 914 914 686 500 20 508.0 529 318 762 508 1524 1016 1016 762 550 22 559 - 343 838 559 1676 1118 1118 838 600 24 610 630 381 914 610 1829 1219 1219 914 650 26 660 - 406 991 660 1982 1320 - - 700 28 711 720 438 1067 711 2134 1422 - - 750 30 762 - 470 1143 762 2286 1524 - - 800 32 813 820 502 1219 813 2438 1626 - - 850 34 864 - 533 1295 864 2590 1728 - - 900 36 914 920 565 1372 914 2744 1828 - - 950 38 965 - 600 1448 965 2896 1930 - - 1000 40 1016 1020 632 1524 1016 3048 2032 - - 1050 42 1067 - 660 1600 1067 3200 2134 - - 1100 44 1118 1120 695 1676 1118 3352 2236 - - 1150 46 1168 - 727 1753 1168 3506 2336 - - 1200 48 1220 1220 759 1829 1219 3658 2440 -
