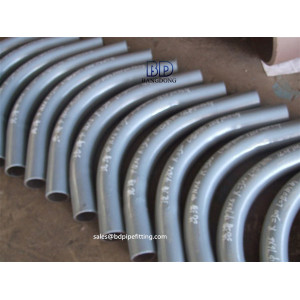

Steel Pipe Bend R 5D 10D A234WPB

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Piece/Pieces
    Delivery Time: 15 Days

Basic Info

Model No.: Steel Pipe Bend

Connection: Welding

Shape: Equal

Head Code: Round

Angle: 60 Degree

Wall Thickness: Sch80s

Material: Carbon Steel

Technics: Forged

Certification: ASME, ANSI, DIN, JIS, GB, API

Color: Black

Additional Info

Packaging: Wooden Case or Pallet or as per buyer's requirements

Productivity: 1000pcs/month

Brand: BD

Transportation: Ocean,Land,Air,TNT/DHL/Train

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: API/ISO/CE

Product Description

Steel Pipe Bend R 5D 10D A234Wpb

A 3D pipe bending is a pipe bend that the bend radius is 3 times the pipe outside diameter.
Our mission is to supply the highest quality products to customers worldwide with an unmatched level of customer service at a superior value. In addition to these hallmarks, we continually invest in research, engineering and development, which enable us to develop new and innovative solutions for the changing needs of industry.

Key Specifications/Special Features:
Carbon Steel Pipe Bend
Seamless Duplex/stainless Steel Elbow Bend
Steel Hot Induction Bend
Seamless Carbon Steel Pipe 5D Bend

Bending radius(R): R=3D, 4D, 5D, 6D, 7D, 8D, 9D, 10D
Bending angle (θ):15°, 30°, 45°, 60°, 90°, 135°, 180°
Straight Length (L): The length between two ends general from 300mm-1500mm
Outer diamete(D): D≤1800mm
Wall thickness(T): T≤120mm
Eend bevel: according to the bevel of welding pipe fittings construction

all the size can product according to the clients' requiry.

Materials
Carbon steel: ASTM/ASME A234 WPB-WPC
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70

Pressure: SCH5 to SCH160
Standard: ANSI B16.9/B16.28 and MSS SP-43/SP-75

Industrial Processes Bending, squeezing, pressing, forging, machining and more

3D Pipe bending Fittings Key Specifications / Features

Carbon Stainless Steel 7D pipe bending, 7D Pipe bending fittings
Materials: carbon steel, stainless steel A234, A403, F304, F304L, F316 and F316L
Thickness: SCH5 to SCH160
Types: 12D Bends
Size: 1/2 to 72 inches (DN15 to DN1,800mm)
Manufacturing standards: ANSI, ISO, JIS and DIN

5D Pipe bending

A 5D pipe bending is a pipe bend that the bend radius is 3 times the pipe outside diameter.

What is 5D in bend pipe?
The RADIUS of a 5D pipe bend is actually what is 5 times the nominal diameter. So if you had a 10" diameter pipe, the radius of the centerline of the bend would be 50 inches.
How do you know a 3d or 5d bend?

It is the radius of bend of the elbow with reference to a point,the point is determined by the intersection of two lines from the elbows socket end (which makes the shape of one quater of a circle). The bend ie; 1.5d,3d,5d,12d is determined from that point of intersection as a multiple of elbows diameter.


We are passionate about pipe bending:

Pipe bend, Bend pipe, Pipe bending, ANSI, ISO, JIS and DIN Standards, Measures 1/2 to 56 Inches.

The bend is used to change the direction of run of pipe.it advantage is can matach long distance transition requirements,so it is commonly that bends dimension according to customer design. usually,the bends consist of 3D, 5D, 7D and 12D series.

Key Specifications/Special Features:

End bevel: according to the bevel of welding pipe fittings construction all the size can product according to the clients' requiry.

Pipe elbows

Standard:

  • Asme B16.9
    ASME B16.28
    ANSI/ASME B16.25
    MSS SP-97

Pressure: SCH5 to SCH160

Bending radius(R): R=3D, 5D, 7D and 12D
Bending angle (θ):15°, 30°, 45°, 60°, 90°, 135°,180°
Outer diamete(D): D≤1800mm
Wall thickness(T): T≤120mm
Straight Length (L): The length between two ends general from 300mm-1500mm

Materials
  • Carbon steel: ASTM/ASME A234 WPB-WPC
  • Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
  • Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
  • ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
  • ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
  • Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
  • High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70

Industrial Processes
Bending, squeezing, pressing, forging, machining and more



bend


Looking for ideal Long Radius 180 Return Bends Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Pipe & Tube Bending are quality guaranteed. We are China Origin Factory of 3D Pipe Bending. If you have any question, please feel free to contact us.
