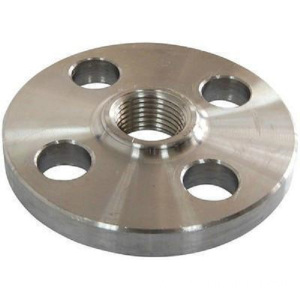

Stainless Steel ANSI Threaded Flanges

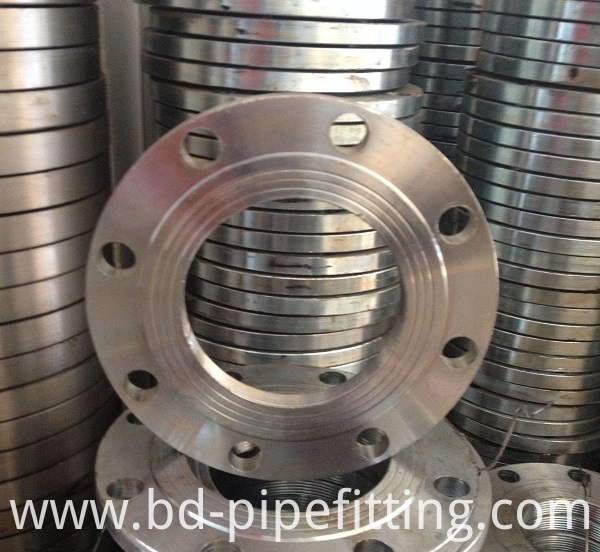

Stainless Steel Threaded Flange are available in stock .Has a raised face and is suitable for use with Schedule 40 or 80 Stainless Steel Pipe, in applications with air, water, natural gas, and steam.

Name               Thread Flange
Product Code    S1014TH004N
Flange Type      ANSI
Alloy                   304\304L Stainless Steel
Pressure Rating   150#
Size                       1/2″
Materials               Forged Stainless Steel
Weight                     0.8818
Packing                     - \ -
Size                          1/2″
Display Desc             304/L Stainless Steel Forged 150# ANSI RF Threaded Flange
Product Name               1/2″ 304/L Stainless Steel Forged 150# ANSI RF Threaded Flange
Family Code               S1014TH
ISO                            Manufacturing Facility is ISO 9001:2008
Packing Inner-
Packing Master -
Weight  Lb                0.8818
Thickness              0.44″
Standards              ASME A182 (Forging), Asme B16.5 (Dimensions), ASME B1.20.1 (Threads)
Bolt Hole Size         0.62″
Number Of Bolt Holes   4
Outside Diameter       3.50″
T                                  0.62″
Bolt Circle                    2.38″
Holes Diameter               0.62″

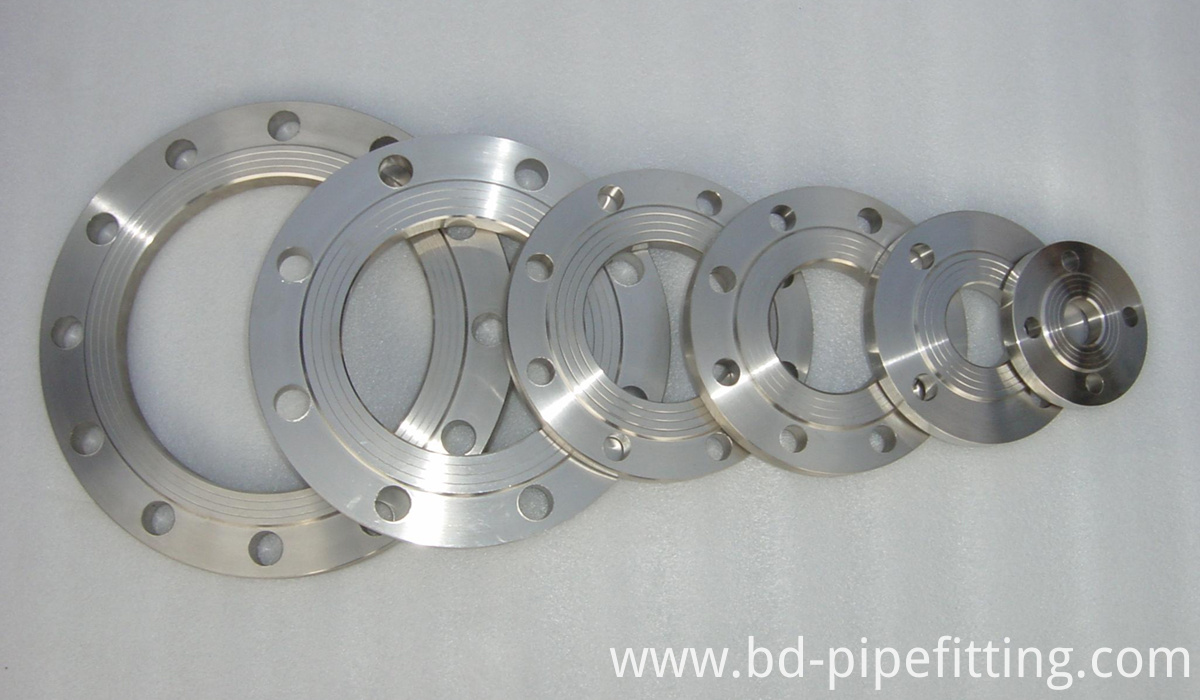

Bangdong Supply Carbon Steel Long Weld Flanges,AWWA Steel Flanges ,Stainless flanges according to ASTM.Weld neck flanges are drilled (machined) with the wall thickness of the flange having the same dimensions of the matching pipe. The lighter the pipe is, the larger the bore, conversely, the heavier the pipe, the small the bore. Our range weld neck flanges, welding neck flanges are normally used for high-pressure, cold or hot temperature. We specialize these flanges in different dimensional and material specifications based upon the requirements of the clients.

ANSI B16.5 FORGED CLASS150, 300, 600, 900, 1500, 2500lb
Flange types Weld Necks, Slip Ons, Blinds, Lap Joint, Socket Weld (up to 4") offered in RF, FF and RTJ finish.
Sizes: ½" to 24"
Material Grades: ASTM A105N, ASTM A350 LF2 ASTM A694 ANSI B16.47 SERIES A & B FORGED CLASS150, 300, 600lb
Flange types Weld Necks, Slip Ons, Blinds, offered in RF, FF and RTJ finish.
Sizes: 26" to 48"
Material Grades: ASTM A105N, ASTM A350 LF2 ASTM A694 ANSI B16.47 SERIES A & B FORGED CLASS150, 300, 600lb
Flange types Weld Necks, Slip Ons, Blinds, offered in RF, FF and RTJ finish.
Sizes: 26" to 48"
Material Grades: ASTM A105N, ASTM A350 LF2 ASTM A694 BS EN1092 (BS4504) FORGED PN6, 10, 16, 25, 40
Flange types Weld Necks, Slip Ons, Blinds
Sizes: 15mm to 300mm (1/2" to 12")
Material Grades: BS.EN 10025 S235JR & ASTM A105N PLATE & BLIND PN6, 10, 16, 25, 40
Sizes: 15mm to 900mm (½" to 36")
Material Grades: S235JR & P245GH BS10 2010ed.
Flange types Slip Ons Forged & plate up to 12", only plate above 12", Blinds
Sizes: 15mm to 900mm (½" to 36")

We have stock for :
Blind Flange
Ansi Blind Flange
Stainless Steel Blind Flange
Raised Face Blind Flange
Slip On Flange
Slip On Weld Flange
SO Flange
Slip On Pipe Flange
Weld Neck Flange

Product Categories : Steel Flange > Thread Flange
