Male Thread Stainless Steel F316L Swage Nipples

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces

Basic Info

Model No.BD-L Swage Nipples

BrandBangdong

ConnectionFemale

Head CodeSquare

Thread DistributionInternal Thread

SurfaceNickle

MaterialCarbon Steel

TechnicsForged

ApplicationOil Pipe

CustomizedNon-Customized

CertificationCSA

Warranty3 Years

Additional Info

PackagingWooden Cases or as per buyer's requirements

Productivity1000pcs/month

TransportationOcean,Land,Air,Train/TNT/DHL

Place of OriginCangzhou,China

Supply Ability1000pcs/month

CertificateISO/CE/API

HS Code73079300

PortBeijing Air Port,Zhengzhou Train Station,Tianjin New Port

Payment TypeL/C,T/T

IncotermFOB,CFR,CIF

Product Description

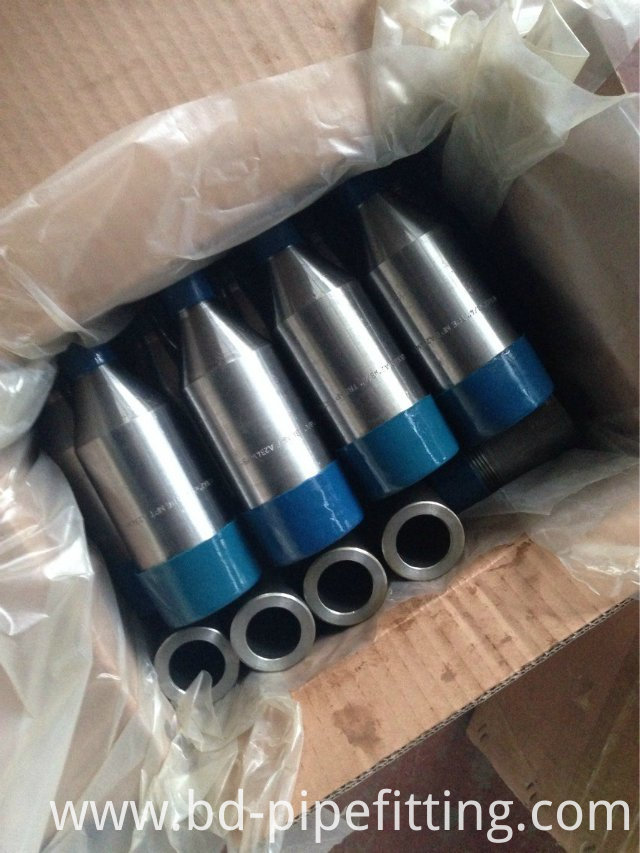

Male Thread Stainless Steel F316L Swage Nipples

Bangdong Supply F316L Swage Nipples , Hexagon Reducing Nipple , Socketed Welded Swage Nipple , carbon steel concentric swage nipple , carbon steel eccentric swage nipple , alloy steel swage nipple , asme b16.11 swage nipple ,  BBE swage nipple . We offer premium quality of  steel Butt Weld Pipe Fittings , Forged Pipe Fittings , flanges and duplex Steel Butt Weld Fittings which are made with premium quality of steel. These precision engineered fittings are mainly used in underground and concealed fittings.

Swage Nipples
Swage Nipples also belong to reducer products, which are used for connecting two pipes with different diameters. The swage nipples has the same classification as the reducer and it can be classified into the eccentric swage nipple and the concentric swage nipple. The swage nipple generally adopts the MSS SP-95 or the BS3799 Standard.
The differences between the swage nipple and the reducer
1. Size ranges
The size range of the reducer is wide. The current size standard of the reducer is from DN15 to DN3400 (from 1/2 " to 136"), while the specification of the swage nipple is from DN6 to DN300 (from 1/4 " to 12").
2. Raw materials
Seamless Steel Pipes or steel plates are used as raw materials for reducers, while round bar steel or billet steel is selected as the raw material for swage nipples.
3. Manufacturing processes
The manufacturing process of the reducer is that we adopt the heat pressing process or the cold pressing process for the seamless reducer(the heat treatment is required for the cold pressing process) and we adopt the hot rolling process for the other reducer. The manufacturing process of the swage nipple is the forging process.
4. Connection ends
Beveled ends are basically adopted for reducers, and plain ends are hardly adopted for reducers. Although the plain end are allowed to be used for the stainless steel or the carbon steel reducer product whose wall thickness is lower than a certain amount. Swage nipples have more connection ends, and two ends of swage nipples can be the same or different based on the requirements of sites or designs; connection ends of swage nipples can be divided into beveled ends, plain ends and threaded ends three kinds. The following table is a good introduction to the connection end of the swage nipple.


Different connection ends of swage nipples

Specifications

1. When we select the swage nipple, we should mark the end. We should also mark NPT or R for taper pipe threads.

2. Big ends and small ends of swage nipples can be divided into plain ends, beveled ends and taper pipe threaded ends three kinds; the following is a table for nine combinations of big and small ends.

Type

Big End

Small End

Code

A

plain ends

plain ends

PBE

B

plain ends

beveled ends

PLE/BSE

C

plain ends

threaded ends

PLE/TSE

D

beveled ends

plain ends

BLE/PSE

E

beveled ends

beveled ends

BBE

F

beveled ends

threaded ends

BLE/TSE

G

threaded ends

plain ends

TLE/PSE

H

threaded ends

beveled ends

TLE/BSE

I

 threaded ends

threaded ends

TBE

3. Wall thicknesses of swage nipples are generally Sch80 (3000LB) or Sch160 (6000LB).

If you require any forged pipe fittings , forged nipple , Forged Pipe Fittings , concentric swage nipple etc , please contact me freely .





Swage Nipple


Psb 4Psb 3

Stainless Steel Butt Weld Fittings

Standard: ASTM / ASME A/SA 403 GR WP [S" / [W" / " WX"

Grade: 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H,347, 347H, 904L

Duplex Steel Butt Weld Fittings

Standard: ASTM / ASME SA 815
Grade: UNS NO.S 31803, S 32205

Carbon Steel & Alloy Steel ButtWeld Fittings
Made as per international quality and safety standards, we offer precision engineered carbon steel butt weld fittings. These high quality fittings gives excellent performance and are available at highly competitive prices.

Carbon Steel Butt Weld Fittings
Standard: ASTM A 234 WPB /MSS-SP-75

Grade: WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Pipe
Standard: A420 WPL3/A420 WPL6

Alloy Steel Butt Weld Fittings
Standard: ASTM / ASME A/SA 234

Grade: WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91.

Nickel Alloy ButtWeld Fittings
We offer nickel alloy buttweld fittings in different grades and as per international quality and safety standards. These butt weld fittings are durable, corrosion resistant and can be customized as per the requirement of the client.

Nickel Alloy Butt Weld Fittings
Standard: ASTM / ASME SB 336.

Grade: UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20) CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276)

Male Thread Stainless Steel F316L Swage Nipples


Please contact us for more details of swage nipples , all materials available
