A350 LF2 spectacle blind flange

Share to:
    Payment Type: L/C,T/T,Western Union
    Incoterm: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Bag/Bags

Basic Info

Model No.BD-L Spectacle Blind

BrandBangdong

StandardGOST

TypeWelding Flange

MaterialAlloy Steel

StructureRound

ConnectionWelding

Sealing SurfaceFF

Manufacturing WayForging

QualityFirst Class

Additional Info

PackagingPlywooden case or pallets

Productivity1000pcs/month

TransportationOcean,Land,Air,TNT/ DHL

Place of OriginCangzhou,China

Supply Ability1000pcs/month

CertificateISO/CE/API

HS Code73072300

PortTianjin Port,Beijing Air Port,Shanghai Port

Payment TypeL/C,T/T,Western Union

IncotermFOB,CFR,CIF,FCA,CPT

Product Description

A350 LF2 Spectacle Blind Flange .  We supply high quality A350 LF2 Blind Spade , A516 Gr60 spade , Spacer & Spade  , Forged LTCS Spade  , WPHY60 Spacer , Carbon steel forged figure 8 flanges , ASME B16.48 Spectacle blinds , A105N Spectacle BlankFigure 8 Flange standard is ASME B16.48 , if you require any of them , please contact us freely , we also manufacture according to the drawings .



Other Material of Spectacle Blind Flange We could offer :

Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2,etc

Stainless Steel: ASTM A182 F304/304L/316/316L, etc

Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc.

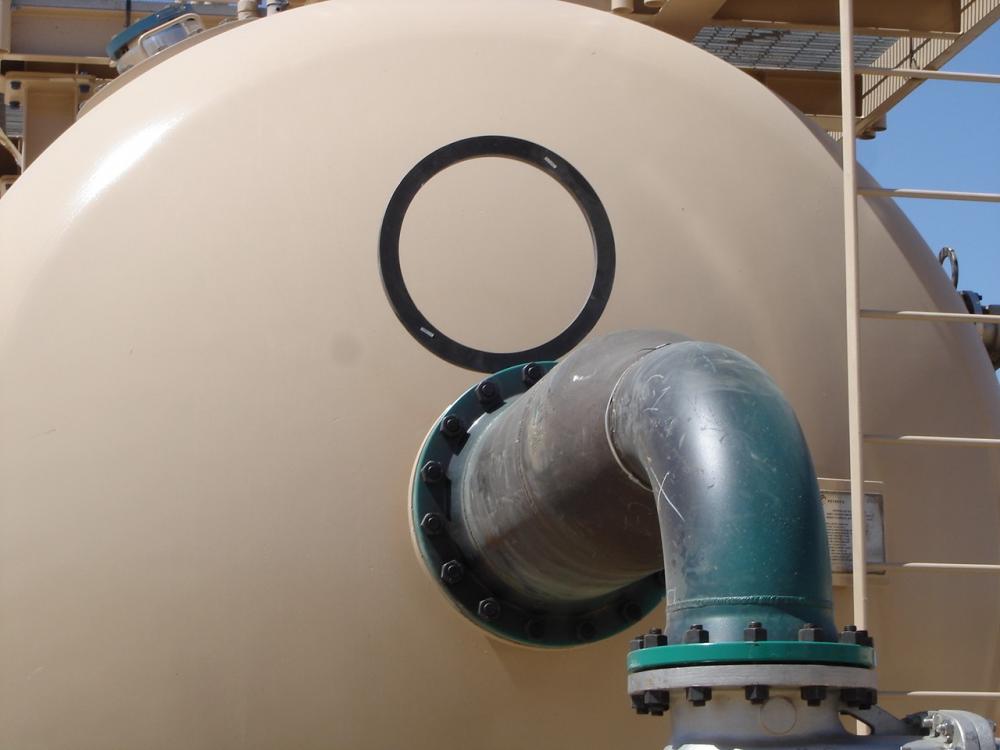

A Spectacle Blind Flange or spec blind, spectacle blank, Spacer & Spade , is a safety device used to isolate a section of line or piece of equipment when the line or equipment needs to be inspected or removed from service. It is different than a valve in that the blind is a permanent or long term isolation device.



A spectacle blind is machined from a single piece of metal that is cut to match the pipe size, fit between two pipe flanges and requires an additional Gasket when it is installed. Also, the bolts will need to be lengthened depending on what piping class and size blind is used. The thickness of the spectacle blind is specified based on the line pressure and pipe size.



The specification that determines the dimensions of a spectacle blinds is ASME B16.48 - Line Blanks. A line blank conforming to this standard will be marked in the following way:



Nominal Pipe Size (NPS)

Nominal Pressure Class

Material

Manufacturer's Name

If RTJ, the ring number

One end of the blind will have an opening to allow flow through the pipe during operation and the other end is solid to block flow during maintenance




If you require any Pandle Spacer , Spacer & Spade , ASME B16.48 Spectacle Blind Flange please call me freely .


Spectacle BlindSpectacle Blind

SpacerSpacerSpacerSpacer Spade

SpecBlind line close
