Company Details
Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. Order: | 10 Piece/Pieces |
Model No.: Slip on Flange
Brand: Bangdong
Standard: BSW
Type: Threaded Connection Flange
Material: Carbon Steel
Structure: Flanges
Connection: Flanged
Sealing Surface: RF
Manufacturing Way: Forging
Packaging: Wooden Cases or Pallet
Productivity: 1000pcs/month
Transportation: Ocean,Land,Air,Train/TNT/DHL
Place of Origin: Vangzou,China
Supply Ability: 1000pcs/month
Certificate: ISO/CE/API
HS Code: 73079100
Port: Tianjin New Port,Beijing Air Port,Cangzhou Train Station
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF

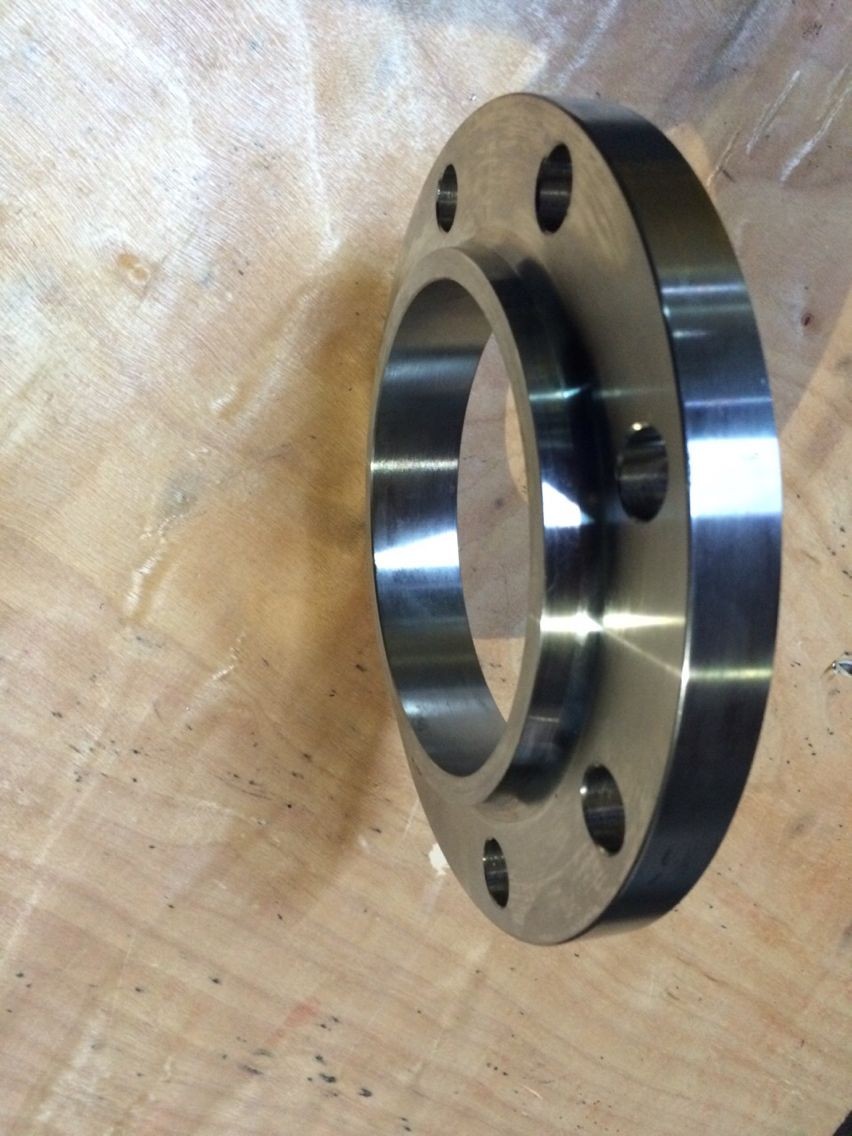

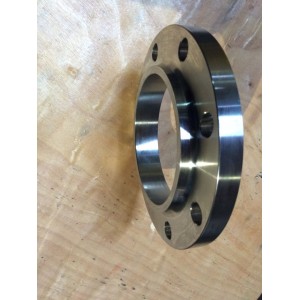

Carbon Steel Slip On Flange
Bangdong supplies DIN Carbon Steel Slip-on Flanges, A105 Carbon Steel Slip-on Flange, Forged Welding Neck Slip on Flange. These slip-on, raised-face fittings can help to place a rim at the end of a pipe. They feature carbon steel construction, which is stronger than stainless steel, is very resistant to wear, and can withstand high pressure, but is also susceptible to corrosion. The slip-on flange is positioned so the inserted end of the pipe or fitting is set short of the flange face by the thickness of the pipe wall plus 1/8 of an inch, which thus allows for a fillet weld inside the SO Flange equal without doing any damage to the flange face.
Slip-On flanges are commonly lower in price than weld-neck flanges, and to this effect are a popular choice for our customers. However, customers should bear in mind that this initial cost saving may be diminished by the additional cost of the two fillet welds required for proper installation. Moreover, weld-neck flanges have a higher life expentancy than slip-on flanges under duress.
As made obvious by their name, these pipe flanges slip over the pipe. They're manufactured with an inside diameter that is slightly bigger than the pipe's outside diameter. These attachments are connected to the pipe via fillet weld at the top and bottom of the flange.
ASME/ANSI B16.5 flange provides Flange Type :
Slip On Flange
LWN Flange
Orifice Flange
Material
Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2,etc
A694 (F42, F46, F48, F50, F52, F56, F60, F65, F70 etc
Stainless Steel: ASTM A182 F304/304L/316/316L, etc
Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc.
If you require A105 slip on flange , A350 LF2 Slip On Flange , F11 Slip On Flange , F91 Slip On Flange , F60 Slip On Flange , F46 Slip on Flange , please contact us freely . We have good price for you .
Product Categories : Steel Flange > Slip On Flange
