Model No.: Flat Faced Slip-On Flanges
Brand: Bangdong
Standard: BSW
Type: Welding Flange
Material: Carbon Steel
Structure: Flanges
Connection: Screws
Sealing Surface: FM
Manufacturing Way: Forging
Packaging: Wooden Case or as per buyer's requirements
Productivity: 1000pcs/month
Transportation: Ocean,Land,Air,Train/TNT/DHL
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
Certificate: ISO/CE/API
HS Code: 73079100
Port: Beijing Air Port,Tianjin New Port,Zhengzhou Train Station
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF

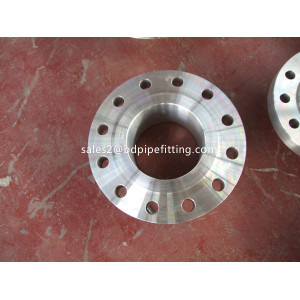

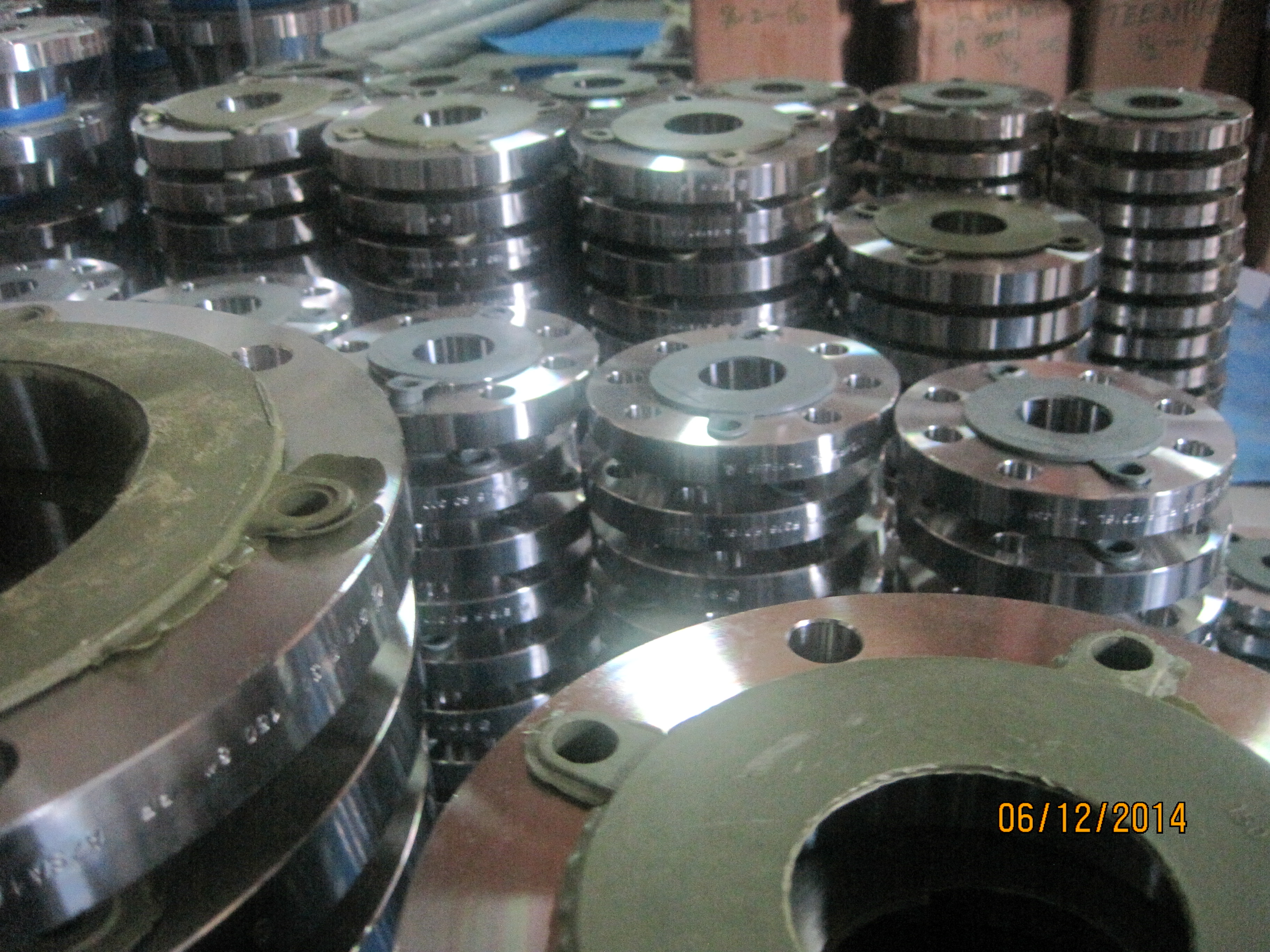

Flat Faced Slip On Flanges DIN PN10
DIN 2576 PN10 PLATE FLANGE
| Flange Dimensions & Approximate Masses |
| Germany standard flange DIN 2576 for soldering or welding Nominal Pressure 10 | |||||||||||
| Flansche, glatt zum löten oder schweißen DIN 2576 Nenndruck 10 | |||||||||||
| Brides plates a souder DIN 2576 pression nominale 10 | |||||||||||
| Pipe | Flange | Screws | Weight (7,85 Kg/dm3) | ||||||||
| Rated Diameter | d1 | d5 | D | b | c | k | Holes | Thread | d2 | Kg | |
| ISO Series 1 | DIN Series 2 | ||||||||||
| 15 | - | 20 | 21 | 95 | 14 | 5 | 65 | 4 | M 12 | 14 | 0,675 |
| 21,3 | - | 22 | 0,669 | ||||||||
| 20 | - | 25 | 26 | 105 | 16 | 5 | 75 | 4 | M 12 | 14 | 0,749 |
| 26,9 | - | 27,6 | 0,936 | ||||||||
| 25 | - | 30 | 31 | 115 | 16 | 5 | 85 | 4 | M 12 | 14 | 1,14 |
| 33,7 | - | 34,4 | 1,11 | ||||||||
| 32 | - | 38 | 39 | 140 | 16 | 5 | 100 | 4 | M 16 | 18 | 1,66 |
| 42,4 | - | 43,1 | 1,62 | ||||||||
| 40 | - | 44,5 | 45,5 | 150 | 16 | 5 | 110 | 4 | M 16 | 18 | 1,89 |
| 48,3 | - | 49 | 1,86 | ||||||||
| 50 | - | 57 | 58,1 | 165 | 18 | 6 | 125 | 4 | M 16 | 18 | 2,51 |
| 60,3 | - | 61,1 | 2,47 | ||||||||
| 65 | 76,1 | - | 77,1 | 185 | 18 | 6 | 145 | 4 | M 16 | 18 | 3 |
| 80 | 88,9 | - | 90,3 | 200 | 20 | 7 | 160 | 8 | M 16 | 18 | 3,79 |
| 100 | - | 108 | 109,6 | 220 | 20 | 7 | 180 | 8 | M 16 | 18 | 4,2 |
| 114,3 | - | 115,9 | 4,03 | ||||||||
| 125 | - | 133 | 134,8 | 250 | 22 | 7 | 210 | 8 | M 16 | 18 | 5,71 |
| 139,7 | - | 141,6 | 5,46 | ||||||||
| 150 | - | 159 | 161,1 | 285 | 22 | 7 | 240 | 8 | M 20 | 22 | 6,72 |
| 168,3 | - | 170,5 | 6,57 | ||||||||
| 200 | 219,1 | - | 221,8 | 340 | 24 | 7 | 295 | 8 | M 20 | 22 | 9,31 |
| 250 | - | 267 | 270,2 | 395 | 26 | 7 | 350 | 12 | M 20 | 22 | 12,5 |
| 273 | - | 276,2 | 11,9 | ||||||||
| 300 | 323,9 | - | 327,6 | 445 | 26 | 7 | 400 | 12 | M 20 | 22 | 13,8 |
| 350 | 355,6 | - | 359,7 | 505 | 28 | 7 | 460 | 16 | M 20 | 22 | 20,6 |
| - | 368 | 372,2 | 19 | ||||||||
| 400 | 406,4 | - | 411 | 565 | 32 | 7 | 515 | 16 | M 24 | 26 | 27,9 |
| - | 419 | 423,7 | 25,9 | ||||||||
| 450 | 457 | - | 462,5 | 615 | 38 | 7 | 565 | 20 | M 24 | 26 | 35,6 |
| 500 | 508 | - | 513,6 | 670 | 38 | 7 | 620 | 20 | M 24 | 26 | 41,1 |
| NOTE: 1. Facing according to DIN 2526 Flat face: Form A, Face without any requirements Form B, Face Rz=160, machined (not smoother than 40µm) Raised Face: Form C, Face Rz=160, machined (not smoother than 40µm) Form D, Face Rz=40, machined Form E, Face Rz=16, machined 2. Tongue and groove according to DIN 2512 Form F, Tongue Form N, Groove 3. Male and Female according to DIN 2513, DIN 2514 Form V13, V14, Male Form R13, R16, Female 4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695 5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696 |
| Production Capacity & Purchase Details | ||
| 1. | Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange. | |
| 2. | Material Carbon Steel: RST37.2, C22.8, S235JR, ST37, P235GH, P245GH, P250GH, ASTM A105 | |
| 3. | Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc. | |
| 4. | Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc. | |
| 5. | Monthly Output: 3000 tons per Month. | |
| 6. | Delivery Terms: CIF, CFR, FOB, EXW. | |
| 7. | Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc. | |
| 8. | Minimum Order Quantity: 1Ton or 100Pcs. | |
| 9. | Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service. | |
Bangdong Supply Flat Faced Slip On Weld Flange,Seamless Piped Flanges,forged fittings and flanges. we have manufactured flange, elbow, tee, reduction, caps, forged fitting materials for oil and natural gas pipelines, refinery and petro chemistry facilities, nuclear power and electricity production plants, refinement and extrication plants, dams and hydroelectric power plants and shipbuilding industry.
Plate Flanges
Rings Sockets
Seamless Piped Flanges
Nozzles (with and without radius)
Anchor Flanges

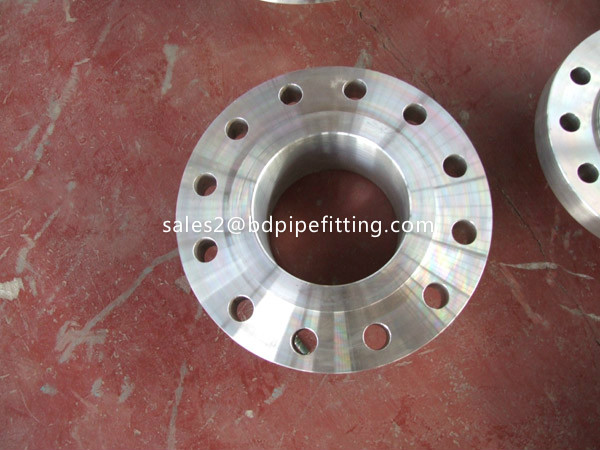

Weld Neck Flanges
Blind Flanges
Socket Weld Flanges
Weld Neck Flanges
Threaded Flanges
Swivel-Ring Flanges
Orifice Flanges
Customized Flanges in line with customer specification
Forged Steel Flanges:
* asme/ANSI b16.5: Welding neck flange, slip-on flange, Blind Flange, high hub blind flange, socket weld flange. Lapjoint flange, threaded flange. Ring type joint flange.
Pressure class: 150, 300, 400, 600, 900, 1500, 2500
* asme/ANSI b16.47: Welding neck flange, blind flange. (series a & b)
Pressure class: 75, 150, 300, 400, 600, 900
* asme/ANSI b16.36: (orifice flanges) welding neck flange, slipon flange, threaded flange.
Pressure class: 300, 400, 600, 900, 1500, 2500
* ASTM/ANSI b16.48: ( figure-8 blanks)
Pressure class: 150, 300, 400, 600, 900, 1500, 2500
* mss sp44: Welding neck flange, blind flange.
Pressure class: 300, 400, 600, 900
* API 6A: Welding neck flange, Thread Flange, blind flange.
Pressure: 2000psi, 3000psi, 5000psi, 10000psi, 15000psi, 20000psi, 25000psi
Material:
ASTM a105; ASTM a350, a694 f42/f46/f52/f60/f65
ASTM a182 f304/304l, f316/316l, f321, f310,
ASTM a 182 f51/f53/f55
* size: 1/2"-48".
