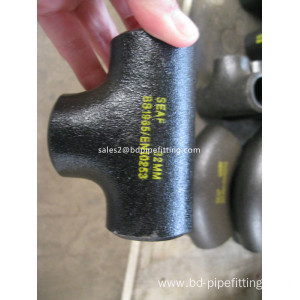

EN10253-2 TypeB 16Mo3 Steel Reducing Tees
Reducing Tee is a type of Pipe Fitting in which the branch port size is smaller than the ports of the run.
Reducing tee is a type of pipe fitting in which the branch port size is smaller than the ports of the run.
Common types of pipe tee
A pipe tee is a type of fitting that has a T shape and is used to join two or more plumbing pipes.
Equre tee (or straight tee), means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.
Reducing tee is a type of pipe fitting in which the branch port size is smaller than the ports of the run.
Barred Tee is used in pipelines that are pigged.
Lateral Tee has a 45 degree branch from a pipeline.
Pipe Cross is a fitting that used in the place where four pipes meet with the same diameter include:
Reducing Cross used for connecting four pipes, the main pipes with the same size, but the dimensions of the branch diameter is smaller than the main pipes.
Equal cross in the place where four pipes meet with the same diameter.
Forged Tee Fittings are pipe fittings that be formed mainly by forging.
Materials
Carbon steel: ASTM/ASME A234 WPB -WPC
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
Size range: 1/2 to 72 inches
Pressure: SCH5 to SCH160
Welding Bevel acc. to standards:
- ASME B16.9, Factory-Made Wrought Steel Buttwelding Fittings
- ASME B16.28, Buttwelding Short Radius Elbows and Returns
- ANSI/ASME B16.25, Buttwelding Ends
- MSS SP-97, Socket Welding, Threaded, and Buttwelding Ends
- Tolerance For butt Welding Fittings
Industrial Processes : Bending, squeezing, pressing, forging, machining and more
Features of Pipe Tee:
- There are three female openings in a T shaped pipe tee.
- There are straight pipe tees which have the same size openings.
- Reducing pipe tees have one opening of different size and two openings of the same size.
- There are sanitary pipe tees which are used in waste lines. These kind of pipe tees have a curved branch which is designed for a clean out plug. They are used to prevent obstruction of waste.
- A cross pipe tee has four equal sized female openings.
- A wing pipe tee has lugs to fasten the fitting to a wall or stud.
- A compression pipe tee uses compression fittings on two or more ends.
- A test pipe tee has a threaded opening. This opening is used in conjunction with a threaded plug for a clean-out opening on a drain pipe.
Steel Pipe Fittings-- 2"*1" Reducer Tee SCH40S--WP304/304L, PE pipe installation available welding or fused to form a completely closed seepage control system. Good low temperature resistance, corrosion resistance, long life, buried pipeline within to -40 °C and 40 °C.
1. Tee :Straight (Equal) Tee ,Reducer Tee
2.Wall Thickness: SCH5S-XXS
3.Size Range:
Welded: 1/2"-48" (DN15-DN1200)
Seamless 1/2"-24"(DN15-DN600)
4.Standard
Asme B16.9, GB/T12459, GB/T13401, SH3408, SH3409, HG/T216345, HG/T21631, MSS SP-43, DIN2605, JIS B2313
5.Material
Grade: 304/L, 316/L,321/L, 317/L,347/H, 904L,310S, Duplex2205/S31803/F51,
2507/S32750/F53, Astm A234 , WPB/WPC/WP11/WP22
6.End Treatment
Bevel Ends , Plain Ends , or as per Clients Requirements
7.Surface Treatment: Transparent Oil
8.Packing: Wooden box or as per customers' requirements
Product Categories : Butt Weld Pipe Fitting > Pipe Equal/Reducing Tee
