EN755 AW 6060 DIN 2605 aluminum elbow

Bangdong offer high quality aluminum elbow , like DIN 2605 Sr Aluminum Elbow , EN AW 6060-T66 Pipe Fitting , EN755 Aluminum elbow , EN755 Pipe Fitting Elbow , AW 6060 T66 Sr Elbow . These batch elbow exported to our Russian client every 4 months .

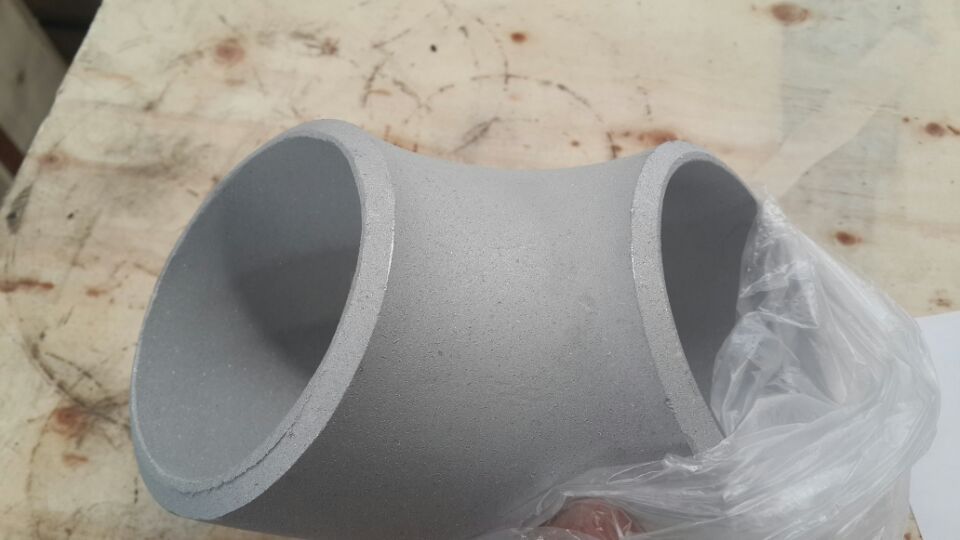

EN755  EN AW 6060-T66 DIN 2605 sr aluminum elbow

Dimension :  1/2" and above or as requirements

Radius :  LR aluminum elbow / SR aluminum elbow Special Elbow radius

Standard : DIN 2605

Material Standard : EN 755 EN AW 6060 T66

End : butt weld bevel end

Apart from the standard alloy EN AW-6060, you can order profiles from us in various other alloys (EN AW -6082, EN AW -5083 and EN AW -5754). The range is constantly growing. If possible, we will source any dimensions not available in our stocklist.

Elbow, Aluminium acc. to EN 755, EN AW 6060-T66, sim. to DIN 2605

Product description:

Bangdong Pipeline can offer Aluminium ENAW-6060 Pipes, Pipe Fittings & Flanges(6060 - T6), Aluminium 6060 Pipe, Aluminium 6060 Butt Weld Pipe Fitting, Al Alloy 6060 Flanges, Aluminum 6060 - T6 Seamless Pipe, 6060 – T6 Aluminium Alloy butt weld pipe fitting, Al 6060 Flanges, Al 6060 Pipes.

Size Specifications for Aluminium ENAW-6060 Pipes, butt weld pipe fitting & Flanges (6060 - T6): 25mm to 150mm
The alloy composition of aluminium 6060:
Aluminium: 97.9 to 99.3%

Chromium: 0.05% max

Copper: 0.1% max

Iron: 0.1 to 0.3%

Magnesium: 0.35 to 0.6%

Manganese: 0.10%

Silicon: 0.3 to 0.6%

Titanium: 0.1% max

Zinc: 0.15% max

Residuals: 0.15% max

The alloy and its various tempers are covered by the following standards:

ASTM B 221: Standard Specification for Aluminum and Aluminum-Alloy Extruded Bars, Rods, Wire, Profiles, and Tube

EN 573-3: Aluminium and aluminium alloys. Chemical composition and form of wrought products. Chemical composition and form of products

EN 754-2: Aluminium and aluminium alloys. Cold drawn rod/bar and Tube. Mechanical properties

EN 755-2: Aluminium and aluminium alloys. Extruded rod/bar, tube and profiles. Mechanical properties

ISO 6361: Wrought Aluminium and Aluminium Alloy Sheets, Strips and Plates

Applications of Aluminium ENAW-6060 Pipes, butt weld pipe fitting & Flanges (6060 - T6): Extrusions with complex cross sections and/or requiring anodising, Architectural sections for windows, doors, curtain walls, Interior fittings, frame systems, lighting, ladders, railings, fences, Heat sink sections, electronic modules, electro motor housings, Flexible assembly systems, special machinery elements, Truck and trailer flooring, pneumatic installation, railway, inside applications, Irrigation, heating and cooling pipes, Furniture, office equipment.

From Bangdong Pipeline client can avail Aluminium ENAW-6060 Pipes, butt weld pipe fitting & Flanges (6060 - T6), Aluminium 6060 Pipe, Aluminium 6060 butt weld pipe fitting, Al Alloy 6060 Flanges, Aluminum 6060 - T6 Seamless Pipe, 6060 – T6 Aluminium Alloy  butt weld pipe fitting, Al 6060 Flanges, Al 6060 Pipes.
Client can procure smaller quantities of 6060 Aluminium Alloy Pipe, butt weld pipe fitting & Flanges online ready stock from us at premium cost in any destination by just sending us an email.

If any requirements for Aluminium ENAW-6060 Pipes, butt weld pipe fitting & Flanges (6060 - T6), Aluminium 6060 Pipe, Aluminium 6060 butt weld pipe fitting, Al Alloy 6060 Flanges, Aluminum 6060 - T6 Seamless Pipe, 6060 – T6 Aluminium Alloy  butt weld pipe fitting, Al 6060 Flanges, Al 6060 Pipes kindly do contact us.

Other possible products of Aluminum:

LR Elbow , sr elbow , bend , Concentric Reducer , eccentric reducer , Equal Tee , Reducing Tee , End Cap etc.

If you have related inquiry of lr elbow , sr elbow , butt weld pipe fitting , concentric reducer , eccentric reducer in aluminum material, please contact us freely .

En755 elbow in stock :

EN 755 EN AW 6060 T66 LR elbow

EN 755 EN AW 6060 T66 SR Elbow

EN 755 EN AW 6060 T66 Reducing Elbow

EN 755 EN AW 6060 T66 Special elbow

Product Categories : Butt Weld Pipe Fitting > Pipe Elbow/Bend
