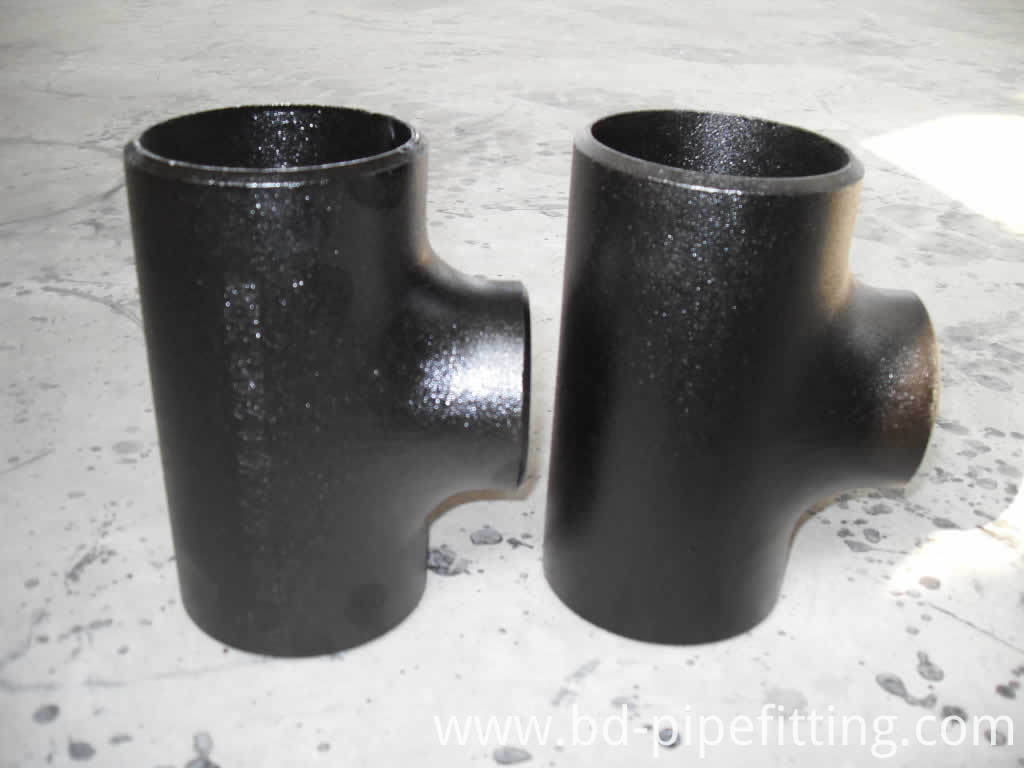

Seamless Butt Welding Carbon Steel Tee

Seamless Butt Welding Carbon Steel Tee

Bangdong Supply Seamless Steel Cross,Weld Pipe Cross,Butt Weld Pipe Cross.We are involved in offering a wide range of Equal Tee that is manufactured by trusted vendors of the market using high grade raw material and the latest technology with the set universal standards. These products are examined against various quality parameters under the strict supervision of skilled professionals to ensure flawless supplies. In addition to this, these products are available in various shapes & dimensions and can also be customized as per various specifications of our prestigious clients.


Tee: Butt weld pipe Tee allows a 90 degree branch off from a running pipe.This allows for connecting auxiliary equipment to a pipe. A tee is welded on both side to the pipe, leaving the branch open for branch off.

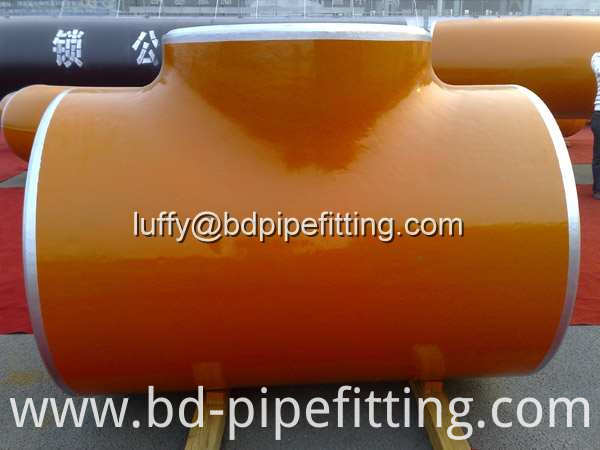

Reducing Tee: Butt weld reducing tee has a branch that is smaller than main run. This allows for branching off to a smaller pipe of equipment from the main run.

Features:

Long service life
Rugged design
Accurate dimension

Butt Weld Pipe Fitting tee type :

Equal tee , Reducing tee , Barred Tee , Lateral Tee , Y tee.

Equal Tee:

Equal Tee Size:1/2"NB TO 98"NB
Equal Tee Schedule:SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Equal Tee Type: Seamless/ERW/Welded
Equal Tee Form: Equal Tee.

Equal Tee Grades:

Stainless Steel Equal Tee–ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Equal Tee–ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Equal Tee–ASTM A420 WPL3/A420WPL6
Alloy Steel Equal Tee–ASTM/ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Equal Tee-ASTM A 815 UNS NO S 31803, S 32205.

Butt Weld Pipe Fitting Tee Bevel

All Welded Pipe fittings have bevelled end to allow for ease of welding. This bevel allows for full penetration weld in most cases. There are two types of bevels;

Plain Bevel and Compound Bevel.

Buttweld Pipe Fitting Tee Specification & Standards

Welded pipe fittings are made as per ASME spec B16.9. Asme B16.9 covers factory made wrought steel butwelding fittings in sizes 1/2" to 102". This standard however does not cover low pressure corrosion resistant buttwelding fittings. See MSS SP-43, Wrought Stainless Steel Butt-Welding Fittings.

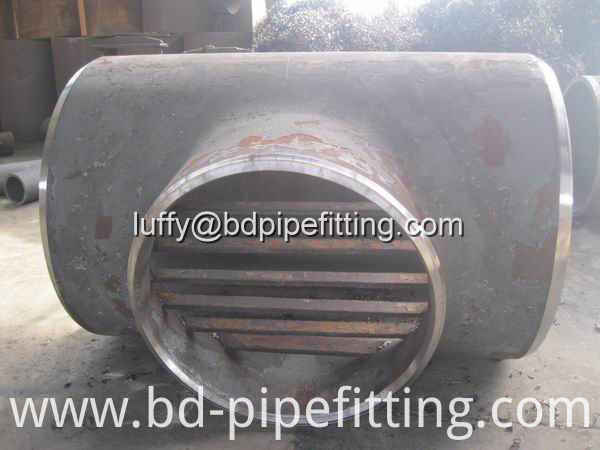

Barred Tee

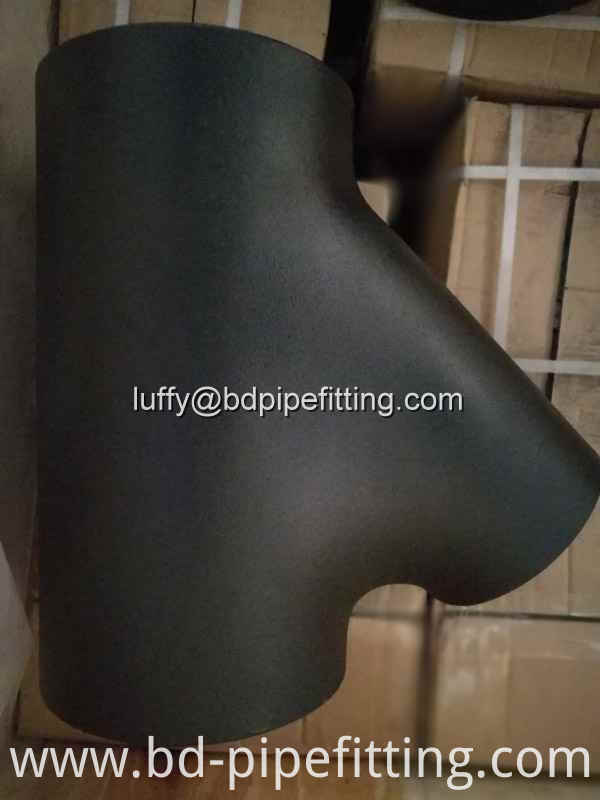

Lateral Tee

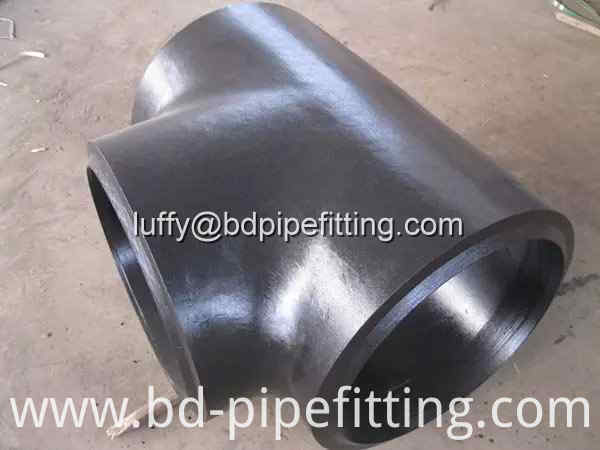

Equal Tee

Product Categories : Butt Weld Pipe Fitting > Pipe Cross
