Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. Order: | 1 Piece/Pieces |
Model No.: tees and crosses
Brand: Bangdong
Connection: Welding
Type: Reducing
Technics: Forged
Material: Carbon Steel
Certification: API
Color: Black
Packaging: Wooden case or as per buyer's requirements
Productivity: 1000pcs/month
Transportation: Ocean,Land,Air,Train/TNT/DHL
Place of Origin: Cangzhou
Supply Ability: 1000pcs/month
Certificate: ISO/CE/API
HS Code: 73079300
Port: Tianjin New Port,Beijing Air Port,Shanghai Port
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF

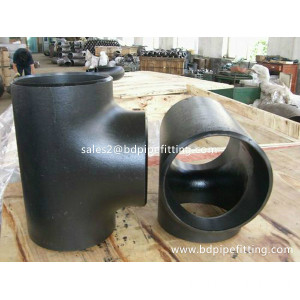

Asme B16.9 butt welding straight tees and crosses
We are Manufacturer, Stockists & Supplier of premium quality range of ANSI/ASME B16.9 Straight Tees and Crosses, Stainless Steel Flanges & Other Stainless Steel Pipe fittings that are manufactured under the expert guidance of our diligent workforce. we are highly experienced company in ANSI/ASME B16.9 Straight Tees and Crosses & other pipe fittings. our ANSI/ASME B16.9 Straight Tees and Crosses & Other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these ANSI/ASME B16.9 Straight Tees and Crosses are corrosion resistance, sturdy and durable. we also supply ANSI/ASME B16.9 Straight Tees and Crosses & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of Steel Flanges and ANSI/ASME B16.9 Straight Tees and Crosses. When you place an order , you will receive the products that will stand up in service from people that will stand behind their product.
Standards: | ANSI – B 16.9 ASTM A403 – ASME SA403 – `Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings` API 590-605 ASME B16.9 – `Factory-Made Wrought Buttwelding Fittings" ASME B16.25 – `Buttwelding Ends` ASME B16.28 – `Wrought Steel Buttwelding Short Radius Elbows and Returns` MSS SP-43 – `Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications` |
Schedule: | Sch 5 TO Sch XXS. |
Sizes: | 1/2" TO 36" (SEAMLESS UPTO 24") (WELDED 8" TO 36" ) |
Materials: | Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30 Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
Type: | Butt Weld (BW) |
Thickness: | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
Dimension: | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
DIMENSIONS OF STRAIGHT TEES AND CROSSES
Nominal Pipe Size (NPS) | DN | Outside Diameter at Bevel | Center- to-End
| |
Run.C | Outlet. M[Notes(1) and (2)] | |||
1/2 | 15 | 21.3 | 25 | 25 |
3/4 | 20 | 26.7 | 29 | 29 |
1 | 25 | 33.4 | 38 | 38 |
1-1/4 | 32 | 42.2 | 48 | 48 |
1-1/2 | 40 | 48.3 | 57 | 57 |
2 | 50 | 60.3 | 64 | 64 |
2-1/2 | 65 | 73.0 | 76 | 76 |
3 | 80 | 88.9 | 86 | 86 |
3-1/2 | 90 | 101.6 | 95 | 95 |
4 | 100 | 114.3 | 105 | 105 |
5 | 125 | 141.3 | 124 | 124 |
6 | 150 | 168.3 | 143 | 143 |
8 | 200 | 219.1 | 178 | 178 |
10 | 250 | 273.0 | 216 | 216 |
12 | 300 | 323.8 | 254 | 254 |
14 | 350 | 355.6 | 279 | 279 |
16 | 400 | 406.4 | 305 | 305 |
18 | 450 | 457 | 343 | 343 |
20 | 500 | 508 | 381 | 381 |
22 | 550 | 559 | 419 | 419 |
24 | 600 | 610 | 432 | 432 |
26 | 650 | 660 | 495 | 495 |
28 | 700 | 711 | 521 | 521 |
30 | 750 | 762 | 559 | 559 |
32 | 800 | 813 | 597 | 597 |
34 | 850 | 864 | 635 | 635 |
36 | 900 | 914 | 673 | 673 |
38 | 950 | 965 | 711 | 711 |
40 | 1000 | 1016 | 749 | 749 |
42 | 1050 | 1067 | 762 | 711 |
44 | 1100 | 1118 | 813 | 762 |
46 | 1150 | 1168 | 851 | 800 |
48 | 1200 | 1219 | 889 | 838 |
Equal Tee

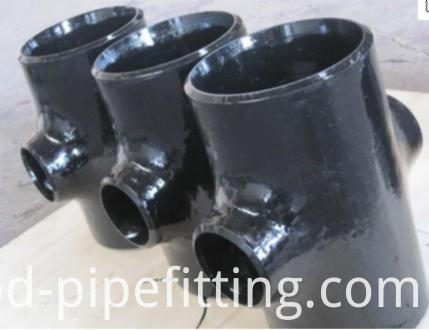

Product Categories : Butt Weld Pipe Fitting > Pipe Cross
