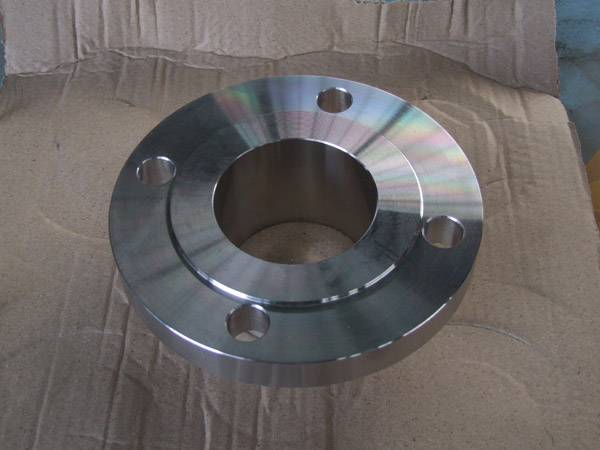

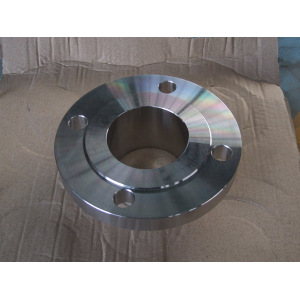

carton Steel Flange WPB ASTM A350
This series flange is used for joining two pieces of pipe or connecting valves in a piping system. It has a slip-on lap joint with bolt holes for connecting to other bolted flanges or flat surfaces. It is made of forged carbon steel for tensile strength and hardness.
Flange has different size, you can order the size and material. we ensure to offer you perfect product.
1. International Standards:
(1) American Standard
ASME/ANSI B 16.5
(2) British Standard
BS 1560, BS 4504, BS 10
(3) German Standard
DIN2641, DIN2642
(4) Australian & Japanese Standard
AS2129, JIS B2220 / KS B1503,
2. Material Specification:
ASTM A 105, ASTM A 181, ASTM A 350, ASTM A 516, ASTM A 694, ASTM A 36
ASTM A182 F304/F304L, F316/F316L, 309, 310, 317L, 321, 347, 904L
Aluminum 3003, 6061; HASTALLOY B-2, C-276, G, X, C-22;
INCONEL 600, 601, 625, 718; INCOLLOY 800, 825, 800H, 800HT
MONEL 400; COPPER C70600, C71500; DUPLEX F51, F53; TITANIUM Gr2, Gr12
3. Pressure Ratings:
150LB, 300LB, 400LB, 600LB, 900LB, 1500LB, 2500LB; 5K, 10K, 16K, 20K, 30K;
PN2.5, PN6, PN10, PN16, PN25, PN40, PN64, PN80, PN100, PN250, PN320, PN400
4. Size Range:
1/2" ~ 24" (DN15 ~ DN600)
