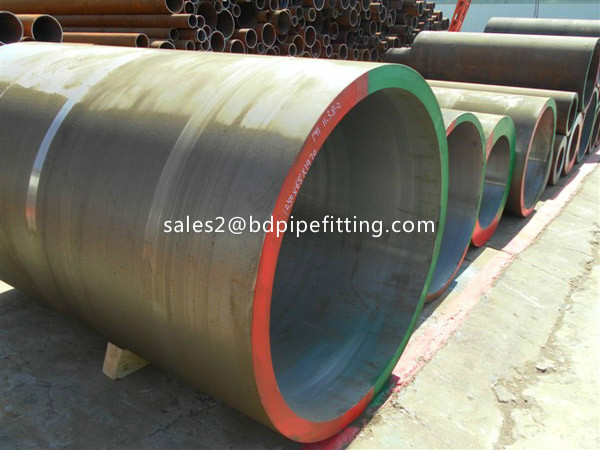

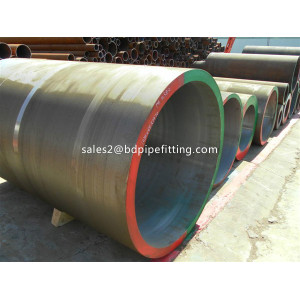

Q195 Low Carbon Steel Pipe
Bangdong supplies Q195 Q235 Black Steel Pipe, Low Carbon Cold Rolled Steel Pipe, Low Carbon Seamless Line Steel Pipe. Carbon steel structural steel is the most widely used, the maximum number of, often rolled into steel, shapes and sections, generally does not require the use of direct heat treated, mainly for construction and general engineering. Respectively steel grades Q195, Q215, Q235, Q255 and Q275, etc., steel grades by the representative of the yield point of the letter (Q), the yield point value, quality, quality symbols (A, B, C, D) deoxy method symbol sequence composed of four parts. From the chemical composition of stars, low-carbon steel grades Q195, Q215, Q235, Q255 and Q275 grade large carbon content, manganese content, the more stable its plasticity.
From the mechanical properties of points, more than the thickness of ≤16mm grades that yield point steel. The tensile strength were: 315-430,335-450,375-500,410-550,490-630 (obN / mm2); qi elongation were: 33,31,26,24,20 ( 0.5%). Therefore, when introduction of steel to customers, to remind customers to buy different materials depending on the desired product of the steel material, so as not to affect product quality.
| Product Name | Q195 low carbon galvanized steel pipe made in china |
| Material | Q195 (low carbon steel )
Chemical composition C:0.06-0.12 Mn:0.25-0.50 Si<=0.30 P<=0.45 Tensile strength :315-430 (Mpa) |
| Technology | Cold rolled galvanized coating |
| Shape | Square. Rectangular.Round |
| Wall Thickness | 0.5mm~20mm |
| Size | Square: 15*15mm 16*16mm 17*17mm 18*18mm 19*19mm 20*20mm 21*21mm 22*22mm 24*24mm 25.4*25.4mm 25*25mm 28*28mm 30*30mm 31*31mm 28.6*28.6mm 32*32mm 35*35mm 37*37mm 38*38mm 35.5*35.5mm 40*40mm 45*45mm 48*48mm 50*50mm 60*60mm 70*70mm 75*75mm 80*80mm 100*100mm |
| Rectangular: 10*20mm 10*22mm 10*30mm 12*14mm 12*32mm 12*34mm 12*48mm 12.3*25.4mm 13*23mm 13*26mm 14*20mm 14*39mm 14*42mm 14*72mm 15*25mm 15*30mm 15*32mm 15*40mm 15*88mm 16*26mm 16*40mm 17*37mm 18*35mm 19*38mm 20*25mm 20*30mm 20*40mm 22*25mm 22*26mm 25*38mm 25*30mm 25*40mm 25*50mm 30*40mm 30*50mm 30*60mm 30*70mm 40*60mm 40*80mm 45*75mm 50*100mm |
| Round: 1/2"(∅21.3mm) 3/4"(∅26.7mm) 1"(∅33.4mm) 1 1/4"(∅42.2mm) 1 1/2"(∅48.3mm) 2"(∅60.3mm) 3"(∅88.9mm) 4"(∅11.4.3mm) 5"(∅141.3mm) 6"(∅168.3mm) 8"(∅219.1mm) 10"(∅273mm) 12"(∅323.8mm) 14"(∅355.6mm) 16"(∅406.4mm) |
| Length | 5.8-12m |
| Tolerance | Wall thickness tolerance :+/-0.2mm
Length tolerance :+/-20mm |
| Package | 1.In Bundle
2.Plastic Outside In Bundles
3.In Bulk
4.As Customer's Request |
| Payment Term | 30% deposit in advance, TT BL COPY LC |
| MOQ | 10 TON |
| Delivery time | Within 10-15 Days after receive deposit |
Q195 low carbon galvanized steel pipe made in china can match the most diverse requirment of targets industries in terms of steel grades,windth,thickness,tolerances and surface finish.
If you require any Carbon Steel Pipe , A106 B Steel Pipe , Alloy Steel Pipe please call me freely .
We have good stock of A335 P22 Steel Pipe , A335 P12 Steel Pipe . Both Seamless Pipe , Welded Pipe
Product Categories : Steel Pipe > Carbon Steel Pipe
