Company Details
Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. Order: | 10 Meter |
Model No.: Pipe & Tube
Brand: Bangdong
Type: Seamless
Certification: CE
Application: Gas Pipe
Section Shape: Round
Surface Treatment: Black
Usage: Construction & Decoration
Technique: Hot Rolled
Material: Carbon Steel
Packaging: Bundled or as per buyer's requirements
Productivity: 1000mtr/month
Transportation: Ocean,Land,Air,Train/TNT/DHL
Place of Origin: Cangzhou,China
Supply Ability: 1000mtr/month
Certificate: ISO/CE/API
HS Code: 73043990
Port: Tianjin New Port,Beijing Air Port,Shanghai Sea Port
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF

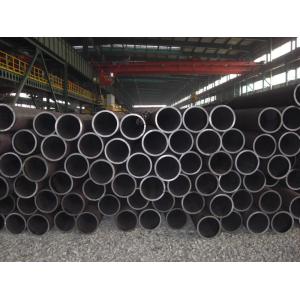

ASTM S/A 106 Carbon Steel Pipe & Tube . Bangdong could supply ASTM S/A 106 Carbon Steel Pipe & Tube , A106 B Steel Pipe , API 5L PSL1 & PSL2 Pipes , Carbon Steel Pipe , Galvanized Carbon Steel Pipes , Welded and Seamless Carbon Steel Pipe and other seamless steel pipe or welded steel pipe . If you require any Carbon Steel Pipe , A106 B Steel Pipe , SMLS CS Pipe welcome to call us freely .
ASTM A106 pipe (also covered in ASME specifications as S/A 106) is the standard specification for seamless carbon steel pipe for high-temperature service. Most common uses are in refineries and plants when gasses or fluids are transported at high temperatures and pressures. Bangdong is a world leader in the supply of A106 / SA 106 pipe and stocks a full range of grades B/C in a size rage of NPS 1/8″ to NPS 48″, with nominal (average) wall thickness as given in ANSI B36.10. Pipe having other dimensions may be furnished provided such pipe complies with all other requirements of this specification*. Pipe ordered under this specification shall be suitable for bending, for flanging, for welding, and for similar forming operations. A full range of A106 stock is available in Schedules 10 through 160, STD, XS, XXS. Unscheduled wall thicknesses available up to 4 inches.

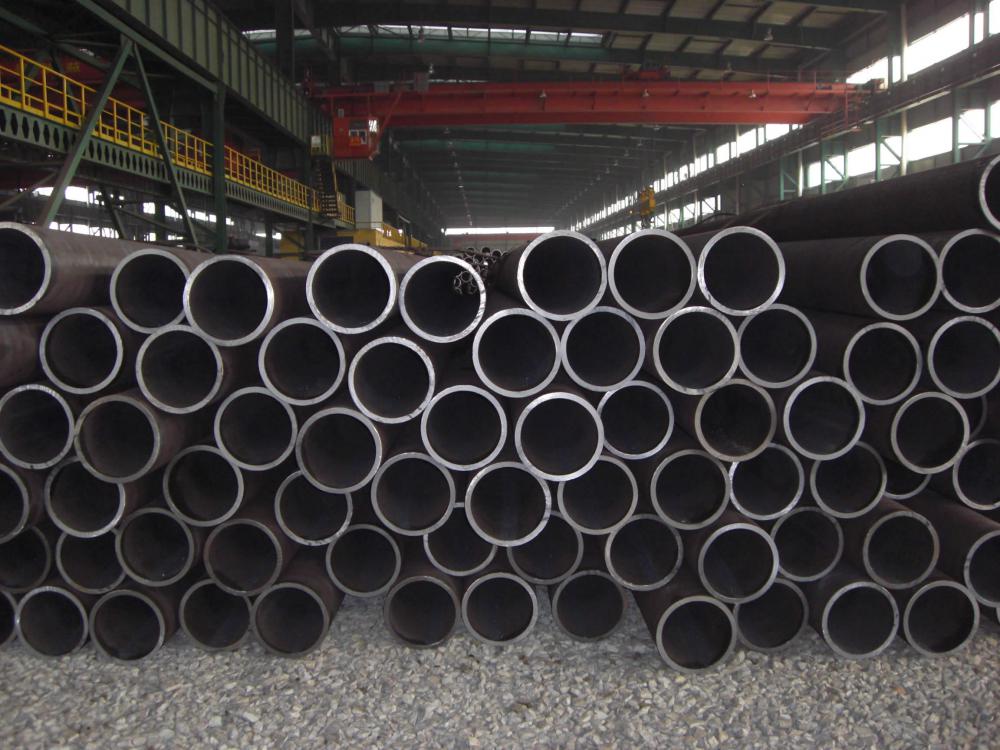

Bangdong stocks a full range of A106 seamless carbon steel pipe.
A106 B Steel Pipe
Grades B/C
Sizes
NPS 1/8″ to NPS 48"
Wall thickness: Schedules 10 through 160, STD, XS, XXS.
*Commonly requested unscheduled walls up to 4" and certified minimum wall items
Chemical Properties %
| C, max. | Mn | P, max | S, max | Si, min | Cr, max | Cu, max | Mo, max | Ni, max | V, max |
Grade A * | 0.25 | 0.27 – 0.93 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
Grade B | 0.30 | 0.29 – 1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
Grade C | 0.35 | 0.29 – 1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
*For each reduction of 0.01% below the specified carbon maximum, an increase of 0.06% manganese above the specified maximum will be permitted up to a maximum of 1.35%.
Mechanical Properties
Grade A Grade B Grade C
Tensile strength, min, psi (MPa) 48,000 (330) 60000 (415) 70,000 (485)
Yield strength, min, psi (MPa) 30,000 (205) 35,000 (240) 40,000 (275)
(Note: This is summarized information from ASME Specification A106. Please refer to the specific Standard or Specification or contact us for more details.)
A106 PIPE SPECIFICATIONS
S/A106
NPS 1/4″- 30″
Schedules 10 through 160, STD, XH and XXH
ASTM A106 seamless pressure pipe (also known as ASME SA106 pipe) is commonly used in the construction of oil and gas refineries, power plants, petrochemical plants, boilers, and ships where the piping must transport fluids and gases that exhibit higher temperatures and pressure levels.

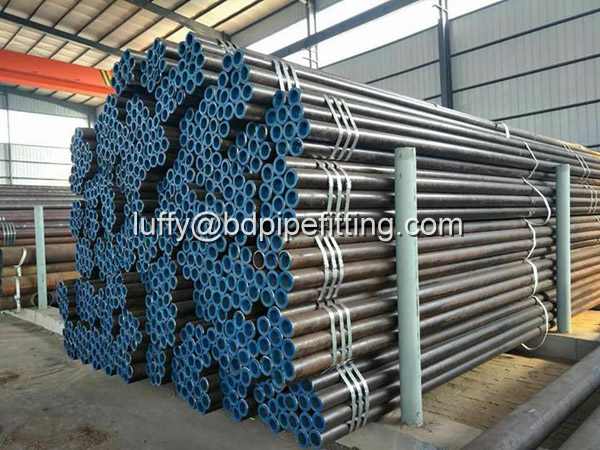

We stock a full range of A106 pipe (SA106 Pipe) in:
Grades B and C
NPS ¼" to 30" diameter
Schedules 10 through 160, STD, XH and XXH
Schedules 20 through XXH
Wall Thickness beyond XXH, including:
– Up to 4" wall in 20" through 24" OD
– Up to 3" wall in 10" through 18" OD
– Up to 2" wall in 4" through 8" OD
Scope
ASTM A106 Seamless Pipe (also known as ASME SA106 pipe) covers seamless carbon steel nominal wall pipe for high-temperature service. Suitable for bending, flanging and similar forming operations.
NPS 1-1/2″ and under may be either hot finished or cold drawn. NPS 2″ and larger shall be hot finished unless otherwise specified.
Process
Killed steel, with primary melting process being open-hearth, basic-oxygen, or electric-furnace, possibly combined with separate degassing or refining.
Steel cast in ingots or strand cast is permissible.
Hot-finished pipe need not be heat treated.
Cold-drawn pipe shall be heat treated after the final cold draw pass.
Product Categories : Steel Pipe > Carbon Steel Pipe
