Company Details
Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. Order: | 10 Piece/Pieces |
Model No.: Steel Pipe
Brand: Bangdong
Type: Seamless
Certification: UL
Application: Drill Pipe
Section Shape: Round
Surface Treatment: Oiled
Usage: Construction & Decoration
Technique: EFW
Material: Carbon Steel
Packaging: Wooden Cases or as per buyer's requirements
Productivity: 1000pcs/month
Transportation: Ocean,Land,Air,Train/TNT/DHL
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
Certificate: ISO/CE/API
HS Code: 73043990
Port: Tianjin New Port,Zhengzhou Train Station,Wuhan Train Station
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF

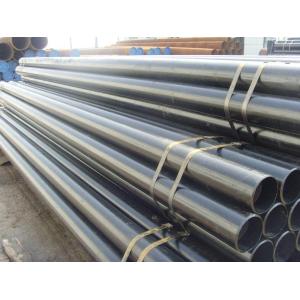

Seamless Or Welded Carbon Steel Pipe
Bangdong Supply Cold Drawing Seamless Pipe,Steel Run Pipe,Steel Straight Pipe.Seamless or welded carbon Steel Pipe as the outer backing layer, and corrosion-resistant alloy pipe as the inner corrosion layer, using the limit elasticity hydraulic composite method innovated independently by the company achieves the composite between the inner and outer pipe and forms the mechanical liner pipe. Through the composite technology, the optimal composite effect of mechanical liner can be achieved, and the shear stress between inside and outside metal layer can reach 2.0MPa (the relative standard requires 0.2-0.5MPa). Meanwhile, we develops specially the pipe ends automatic overlaying technology and NC machine tools specialized for beveling, which can process complex shape bevels such as U-bevel, and guarantees the conformity of pipe mouth diameter and bevel size, so as to operate pipe jointing on site.
Specifications
Outside Diameter:Φ610mm-Φ7000mm(24"-276")
Wall Thickness:8mm-230mm(3/10"-9")
Quality Standards:API.DNV.ISO.DEP.EN.ASTM.DIN.BS.GB.CSA
Length:3m-100m(10'-328')
Grades:API 5L A-X90, GB/T9711 L190-L625
Size Range |
---|
Small Dia Large Dia |
OD/Size 1/2" ~ 4 " 6" ~ 20" |
Wall Thickness (1.5 – 9.5)mm (4.8 – 16.0)mm |
Pipe Length (3.0 – 13.0)M (5.0 _ 18.0)M |
Spec ASTM 500 _ EN-10219 API 5L _ API 5CT _ ASTM A53 ASTMA53 _ UL6 _ BS 4568 ASTM A252 _ 01 SAMSS 333 CLASS B BSC _ EN-10255 _ BS 1139 SASO 1011 SHELL DEP 31.40.20.37 BS 1387 L, M _ SBS _ EN39 ISO 3183 _ 01-SAMSS 333 CLASS C ANSI C80.1 _SASO 1011 _API 5l BS 1387 H _ SHELL DEP 31.40.20.35 |

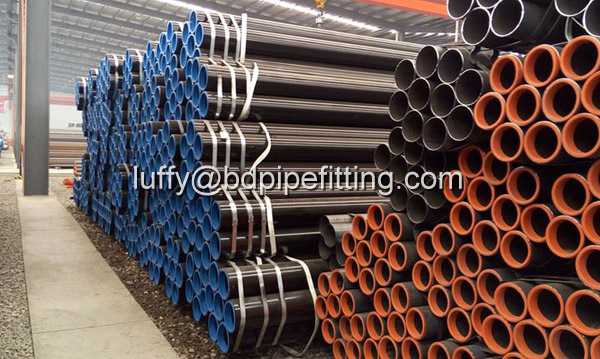

ASTM A106 pipe (also covered in ASME specifications as S/A 106) is the standard specification for seamless carbon steel pipe for high-temperature service. Most common uses are in refineries and plants when gasses or fluids are transported at high temperatures and pressures. Bangdong is a world leader in the supply of A106 / SA 106 pipe and stocks a full range of grades B/C in a size rage of NPS 1/8″ to NPS 48″, with nominal (average) wall thickness as given in ANSI B36.10. Pipe having other dimensions may be furnished provided such pipe complies with all other requirements of this specification*. Pipe ordered under this specification shall be suitable for bending, for flanging, for welding, and for similar forming operations. A full range of A106 stock is available in Schedules 10 through 160, STD, XS, XXS. Unscheduled wall thicknesses available up to 4 inches.
Bangdong stocks a full range of A106 seamless carbon steel pipe.
Grades B/C
Sizes
NPS 1/8″ to NPS 48"
Wall thickness: Schedules 10 through 160, STD, XS, XXS.
*Commonly requested unscheduled walls up to 4" and certified minimum wall items
Chemical Properties %
| C, max. | Mn | P, max | S, max | Si, min | Cr, max | Cu, max | Mo, max | Ni, max | V, max |
Grade A * | 0.25 | 0.27 – 0.93 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
Grade B | 0.30 | 0.29 – 1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
Grade C | 0.35 | 0.29 – 1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
*For each reduction of 0.01% below the specified carbon maximum, an increase of 0.06% manganese above the specified maximum will be permitted up to a maximum of 1.35%.
Mechanical Properties
Grade A Grade B Grade C
Tensile strength, min, psi (MPa) 48,000 (330) 60000 (415) 70,000 (485)
Yield strength, min, psi (MPa) 30,000 (205) 35,000 (240) 40,000 (275)
(Note: This is summarized information from ASME Specification A106. Please refer to the specific Standard or Specification or contact us for more details.)
Bangdong Pipeline Products ASTM/ASME A53/SA53 seamless and welded steel pipe is a general, all-purpose pipe used in generator plants, refineries, compressor stations, natural gas transmission, and steam conduction. It is acceptable for welding, flanging, and bending.
Our steel is locally sourced, developed and produced which means our customers are assured of the highest quality standards and a local, concerned customer service presence invested in the success of your project. Bangdong Pipeline has control over every step of the pipe manufacturing process, from melt to final product. We manufacture our tubular products at several C.N.-based facilities that produce high-quality tubular products with low-residuals in a wide range of strength levels with superior toughness.
ASTM Specification A53 covers seamless and welded, black and hot-dipped galvanized nominal (average) wall pipe for coiling, bending and other special purposes and is suitable for welding. Bangdong Pipeline Products does not produce galvanized pipe.
Seamless and ERW | Grade A | Grade B |
Tensile Strength, min, psi | 48,000 | 60,000 |
Yield Strength | 30,000 | 35,000 |
Seamless and ERW | C max % | Mn max % | P max % | S max % |
Grade A | 0.25 | 0.95 | 0.05 | 0.045 |
Grade B | 0.30 | 1.20 | 0.05 | 0.045 |
· Testing Requirements for seamless and welded API 53 steel pipe
o Hydrostatic Testing test pressures for plain and threaded and coupled pipe are specified. Hydrostatic pressure shall be maintained for not less than 5 seconds for all sizes of seamless and ERW pipe.
o Mechanical Tests:
§ Tensile Test: Two transverse tests required on the ERW for NPS 8 and larger, one across the weld and one opposite the weld.
§ Flattening Test: On ERW for NPS 2 and larger, STD and XS wall (not required for XXS pipe)
§ Bending Test (cold): For NPS 2 and under, XS wall and under; for NPS 1-1/4 and under, XXS wall
| Degree of Bend | Diameter of Mandrel |
For normal A53 users | 90 | 12 x nom. diameter of pipe |
For Close Coiling | 180 | 8 x nom. diameter of pipe |
Number of Tests: Seamless and Electric Resistance Weld (ERW) – bending,
Seamless Steel Pipe Stock :
API 5L Steel Pipe , Carbon Steel Pipe, A106 B Steel Pipe , Pipe
A333 GR6 Pipe , A53 GR B Steel Pipe , SMLS CS Pipe
Product Categories : Steel Pipe > API Pipe
