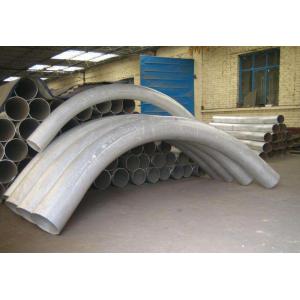

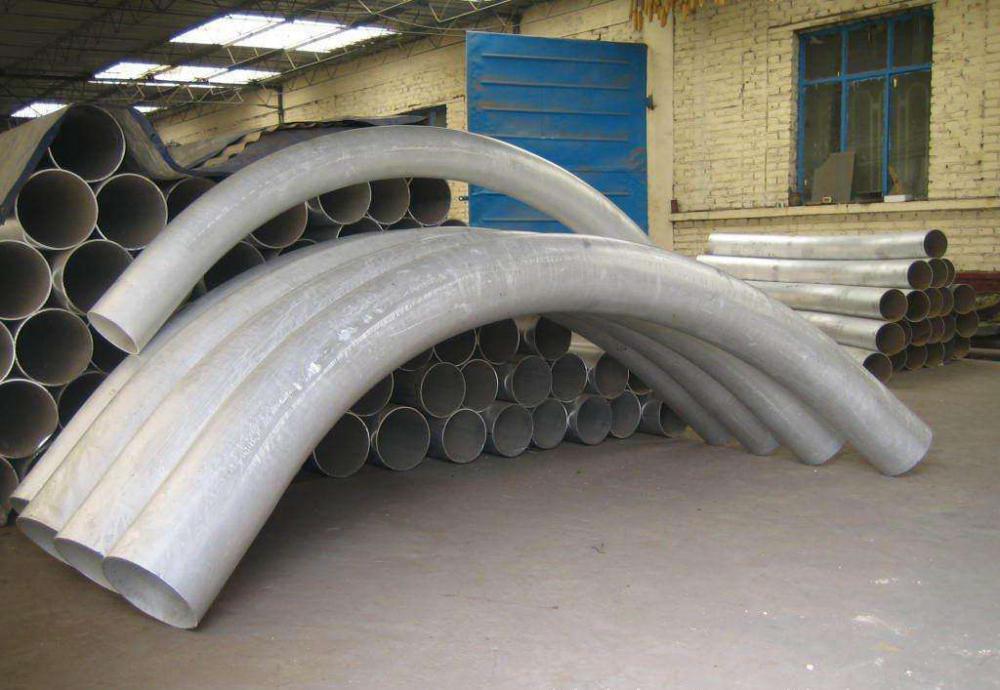

Steel Pipe Fitting Elbow Tee Reducer
a Pipe Elbow is a pipe fitting used in plumbing systems to contect two pipe of the same or different nominal diameter. It is a bent at an angle to allow straight pipes to be joint at an angle, there by realizing a change of direction. Of all pipe fittings, Butt Weld Pipe Elbow is the most widely used one, which is used in a variety of applications in industries such as electrical power, marine, heating, papermaking, metalurgy, petrochemical, chemical, oil and gas, and more.
Our Butt Weld Pipe Fitting is made from a variety of materials, such as alloy steel, stainless steel, etc, and the materials used depend on the function of the piping unit.
Elbows bends 45° – 90° – 180° LR/SR
The function of a elbow is to change direction or flow in a piping system. By default, there are 5 opportunities, the 45°, 90° and 180° elbows, all three in the “long radius” version, and in addition the 90° and 180° elbows both in the “short radius” version.Steel Reducing Elbow also available
LR 90 Elbow: Long radius 90 degree elbow has the center line of elbow at 1.5 x NPS from eblow end. 3R elbow has center line at 3 x NPS from elbow end.
LR 45 Elbow: Long radius 45 degree elbow changes the direction by 45 degrees.
LR 180 degree Bend: Long Radius 180 degree return bend allows complete reversal of flow. The distance between end of elbow and center line is 3 x NPS.
SR90 Elbow: Short Radius 90 degree elbow is same as LR90 except for the measurement between end of elbow to center line is 1 x NPS.
SR 180 degree Bend: Short Radius 180 degree return bend allows complete reversal of flow but in a much tighter turn. The distance between end of elbow and center line is 1 x NPS.
The following are some specific information on our pipe elbow.
Size
Seamless elbow:1/2"~24" DN15~DN600
Butt weld elbow: 4"~78" DN150~DN1900
Wall Thickness
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
Max wall thickness: 200mm
Standard
ASTM, ASME, JIs, SGP, DIN, BS, GOST, EN
Specifications
Type | Butt weld (BW) Radius: R=1D,1.5D 2D, 3D, 5D, 6D, 8D, 10D or Custom |
Standards | ASME / ANSI – B 16.9 ‘Factory-Made Wrought Buttwelding Fittings’Astm A234 - Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service. ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’ |
Dimension | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Thickness | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
Size | 1/2” TO 102”, (Seamless up to 32”), |
Materials and Grade
Carbon Steel :
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6/WPL3
EN10253-2 P235GH P265GH 16Mo3
DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Alloy steel :
ASTM A234 wp5 / wp9 / wp11 / wp22 / wp91
ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65/WPHY70
Mss Sp-75 WPHY42/WPHY52/WPHY60/WPHY65/WPHY70
13CrMo4-5 10CrMo9-10
Stainless Steel:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
Product Categories : Butt Weld Pipe Fitting > Alloy Steel Pipe Fitting
