ASTM A860 Grade WPHY 70 Buttweld Pipe Fittings

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces

Basic Info

Model No.Reducer

BrandBangdong

TypeEccentric

MaterialAlloy

TechnicsForged

StandardsUS Standard

CustomizedNon-Customized

Additional Info

PackagingWooden Case or Pallet or as per buyer's requirements

Productivity1000pcs/month

TransportationOcean,Land,Air,Train/TNT/DHL

Place of OriginCangzhou,China

Supply Ability1000pcs/month

CertificateISO/CE/API

HS Code73079300

PortTianjin New Port,Beijing Air Port,Wuhan Train Station

Payment TypeL/C,T/T

IncotermFOB,CFR,CIF

Product Description

ASTM A860 Grade WPHY 70 Buttweld Pipe Fittings



Buttweld Pipe Reducer(Concentric & Eccentric) Specifications

 Outside Diameter: Seamless Pipe Reducer ( 1/2″~24″), ERW / Welded / Fabricated Pipe Reducer (1/2″~48″)
 Type: Concentric Reducers, Eccentric Reducers
 Wall Thickness: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
 Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
 Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Copper, Cupro Nickel, Inconel, Monel, Hastelloy
 Manufacturing Standards:
-> ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
-> DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
-> EN: EN10253-1, EN10253-2
 ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
 Asme B16.9 – Factory-Made Wrought Fittings Buttwelding
 ASME B16.25 – Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns
 MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
 Stainless Steel Eccentric/ Concentric Pipe Reducers :ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
 Carbon Steel Eccentric/ Concentric Pipe Reducers :ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
 Alloy Steel Eccentric/ Concentric Pipe Reducers : ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
 Nickel Alloy Eccentric/ Concentric Pipe Reducers : ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
 Duplex & Super Duplex Eccentric/ Concentric Pipe Reducers:ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462


Type of Pipe Reducer

Type A Reducer, Decreased pressure factor

Same wall thickness on the weld ends and on the fi tting body as for a pipe with the same specifi ed wall thickness. Their resistance to internal pressure is less than that of a pipe with the same diameter, same wall thickness and made of the same grade of steel.

The required calculation methods are based on the calculation standards defined in EN 13480-3

Type B Reducer, Full pressure factor

Increased wall thicknesses on the fi tting body, same resistance to internal pressure as for a pipe with the same diameter, same wall thickness and made of the same grade of steel.

The required calculation methods are based on the calculation standards defined in EN 13480-3

Reducer Marking

Each fitting must be permanently marked.

Marking through hard stamping.

 Manufacturer`s mark or logo
 Country of manufacture (ISO-Code)
 [EN2″ as reference to this standard
 [B" for fittings of type B
 Steel name or steel number
 [W" (for welded fittings or fittings that are manufactured from welded pipes)
 Cast number or code number
 Mark of the inspection representative
 Outside diameter D*
 Wall thickness T*


We have good stock for below :

A420 Wpl6 Pipe Fitting
Asme B16.9
A234Wpb
A234Wp9 Elbow
A234 Wpb Elbow
Astm A234
Large Diameter Elbow
Large Diameter Fitting

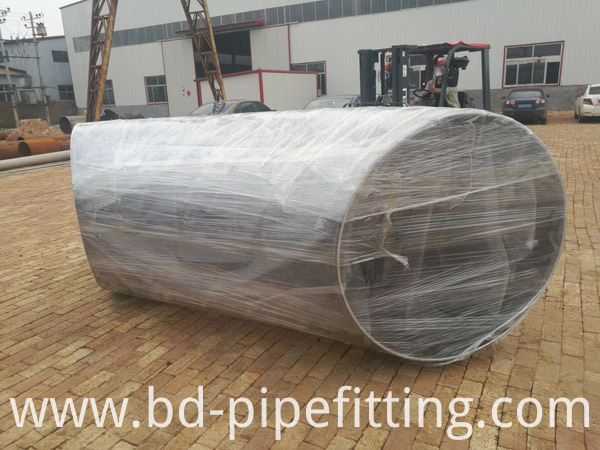

Cs 52in Elbow

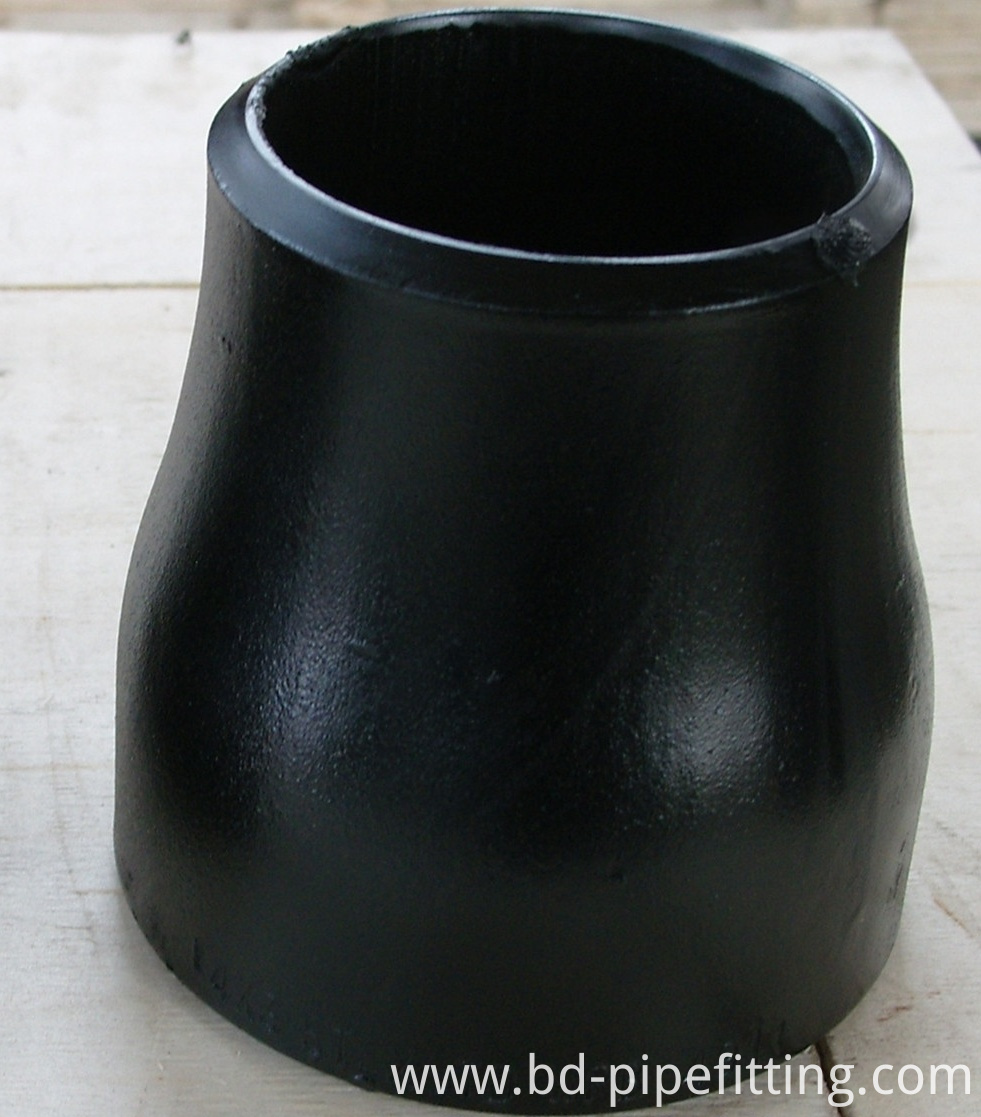

Carbon steel seamless reducer_6
