ASTM A420 WPL3 Equal Tee Reducing Tee . Bangdong is great manufacturer for Butt Weld Pipe Fitting tee . If you need ASTM A420 WPL6 Seamless Equal Tee , Low Carbon Steel Pipe Equal Tee , Astm A420 Wpl6 Equal Tee please contact us freely .
Equal tees/ Reducing Tee
 |  |
| Seamless Equal tees | ERW Equal tees |
 |  |
| High pressure equal tee | Low pressure equal tee |

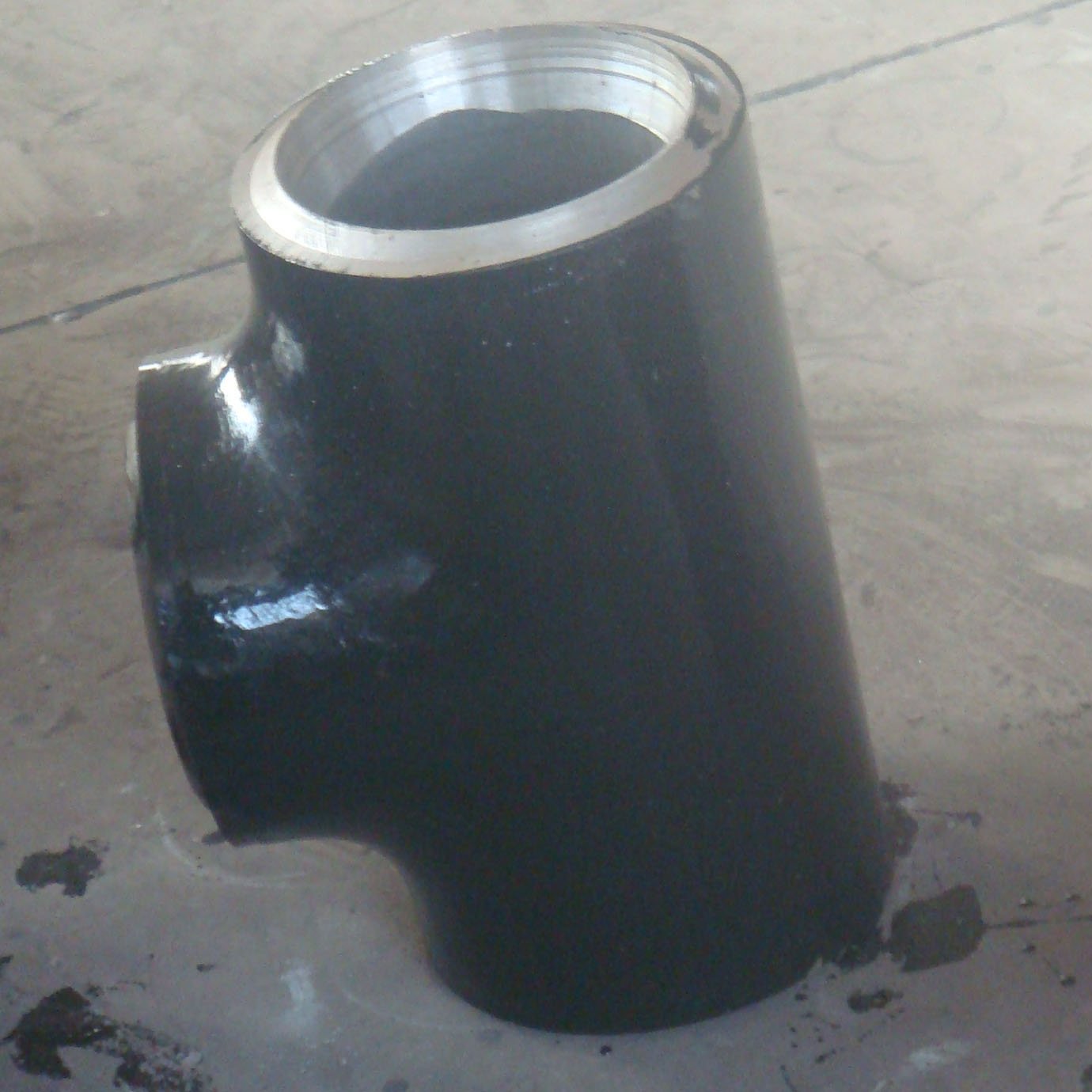

Equal tee (or straight tee), means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee. Asme B16.9 Butt weld Equal Tee Dimensions
| Nominal Pipe Size | Outside diameter
at bevel | Center-to-End |
| Run (C) | Outlet(M) |
| 1/2" | 21.3 | 25 | 25 |
| 3/4" | 26.7 | 29 | 29 |
| 1" | 33.4 | 38 | 38 |
| 1 1/4" | 42.2 | 48 | 48 |
| 1 1/2" | 48.3 | 57 | 57 |
| 2" | 60.3 | 64 | 64 |
| 2 1/2" | 73.0 | 76 | 76 |
| 3" | 88.9 | 86 | 86 |
| 3 1/2" | 101.6 | 95 | 95 |
| 4" | 114.3 | 105 | 105 |
| 5" | 141.3 | 124 | 124 |
| 6" | 168.3 | 143 | 143 |
| 8" | 219.1 | 178 | 178 |
| 10" | 273.0 | 216 | 216 |
| 12" | 323.8 | 254 | 254 |
| 14" | 355.6 | 279 | 279 |
| 16" | 406.4 | 305 | 305 |
| 18" | 457.0 | 343 | 343 |
| 20" | 508.0 | 381 | 381 |
| 22" | 559.0 | 419 | 419 |
| 24" | 610.0 | 432 | 432 |
The dimensions are in millimeters
Source : ASME B16.9 - 2007
Common types of pipe tee
A pipe tee is a type of fitting that has a T shape and is used to join two or more plumbing pipes. - Equre tee (or straight tee), means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.
- Reducing tee is a type of Pipe Fitting in which the branch port size is smaller than the ports of the run.
- Barred Tee is used in pipelines that are pigged.
- Lateral Tee has a 45 degree branch from a pipeline.
- Pipe Cross is a fitting that used in the place where four pipes meet with the same diameter include:
-
- Reducing Cross used for connecting four pipes, the main pipes with the same size, but the dimensions of the branch diameter is smaller than the main pipes.
- Equal cross in the place where four pipes meet with the same diameter.
- Forged Tee Fittings are pipe fittings that be formed mainly by forging.
Materials
Stainless Steel: ASTM A403 WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
·Carbon Steel: Astm A234 WPB / A420 WPL3 / A420 WPL6 / MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
·Alloy Steel: ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Size range: 1/2 to 96 inches
Pressure: SCH5 to SCH160
A420 Wpl6 Pipe Fitting Stock :

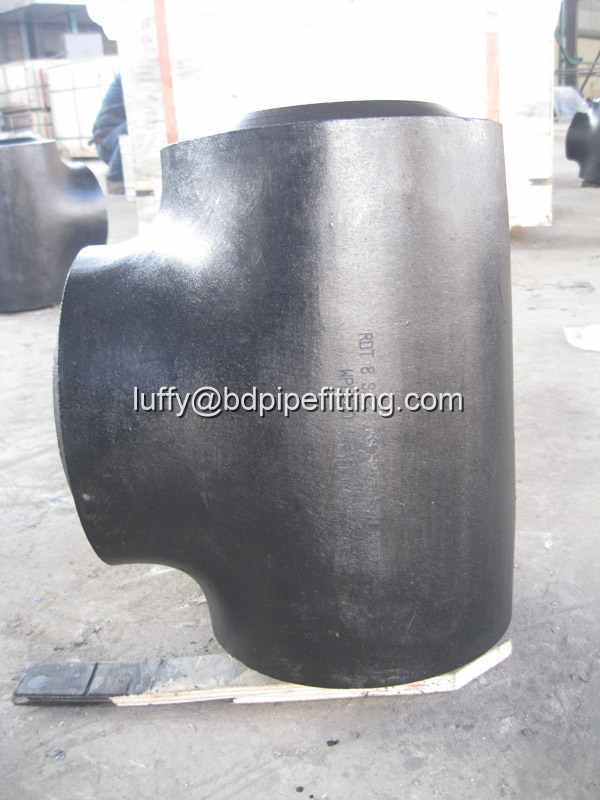

A420 WPL6 Equal Tee
A420 WPL6 Reducing Tee
A420 WPL6 LR Elbow
A420 WPL6 Reducing Elbow
A420 WPL6 Concentric Reducer
A420 WPL6 Eccentric Reducer
Equal Tees:
Equal Tee Size: 1/2"NB TO 48"NB
Equal Tee Schedule: SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Equal Tee Type: Seamless / ERW / Welded
Equal Tee Form: Equal Tee
Equal Tee Grades:
Stainless Steel Equal Tee: ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Equal Tee: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Low Temperature Carbon Steel Equal Tee: ASTM A420 WPL3 / A420WPL6
Alloy Steel Equal Tee: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Equal Tee: ASTM A 815 UNS NO S 31803, S 32205
