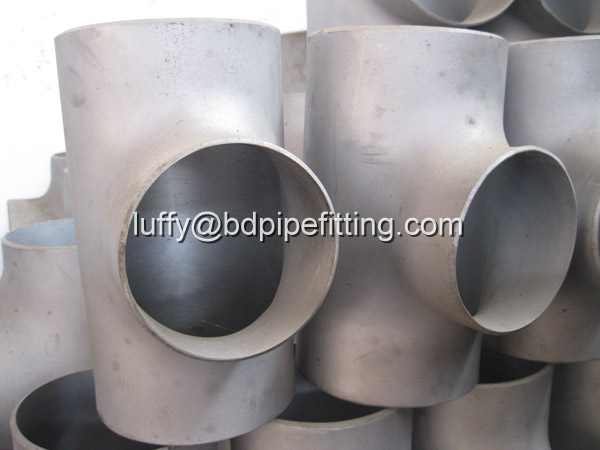

TP904L Butt Weld Pipe Fitting
Bangdong offer high quality 904L Butt weld elbow fitting , Equal & Unequal Tees , 904L Butt weld Pipe Fitting Tee , Stainless 904L BW Pipe Fittings , A403 316L Pipe Fitting . All pipe fittings will do as standard Asme B16.9 , if you require other standards like DIN EN10253 , please kindly tell us , we are experienced with it . Raw material certificate could send for your reference .
Size: 6mm 1/4 inch OD up to 24 inch
Type: Seamless / ERW / Welded / Fabricated / CDW
Outside Diameter: 6.00 mm OD up to 250 mm OD, Sizes up to 12" NB available Ex-stock, OD Size Pipe available Ex-stock
Thickness Range: 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Form: Round Pipes/Tubes, Butt Weld Pipe Fittings , Forged Pipe Fittings , Flanges
Length: Single Random, Double Random & Required Length End: Plain End, Beveled End, Threaded
End Protection: Plastic Caps
Delivery Condition: Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Inspection, Test Reports of 904L Pipe: Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports.
What Specials: Sizes and Specifications other than above can be manufactured on request
Standard: GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
| Stainless Steel 904L Pipe Fittings Specifications |
| Specifications | : | ASTM B366 / ASME SB366 |
| Size | : | 1/8" NB TO 48" NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | : | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | : | Seamless / Welded / Fabricated |
SS 904L Pipe Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 904L | min. | – | – | – | – | – | 19.0 | 4.00 | 23.00 | 0.10 |
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 5.00 | 28.00 | 0.25 |
Stainless Steel 904L Butt weld Fittings Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness |
| Rockwell B (HR B) max | Brinell (HB) max |
| 904L | 490 | 220 | 35 | 70-90 typical | – |
Equivalent Grades for 904L Stainless Steel Pipe Fitting
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS |
| BS | En | No | Name |
| 904L | N08904 | 904S13 | X1NiCrMoCu25-20-5 | 1.4539 | – | – | SUS 904L |
We have 904L related products in good stock :
904L Seamless Pipe Fitting
904L Reducing Tee / Reducing Elbow
904L Butt Weld Pipe Fitting
ASTM A312 pipe fitting
904L Large Diameter Steel Pipe Fitting
Our strength stainless steel products :
316L Special Tee
304/304L Barred Tee
316L High Pressure Elbow
904L Tee
316L Equal Tee
Other butt weld pipe fitting , forged pipe fitting , flanges we do :
Product Categories : Large Diameter Steel Pipe Fitting > A403 WP316L Pipe Fitting
