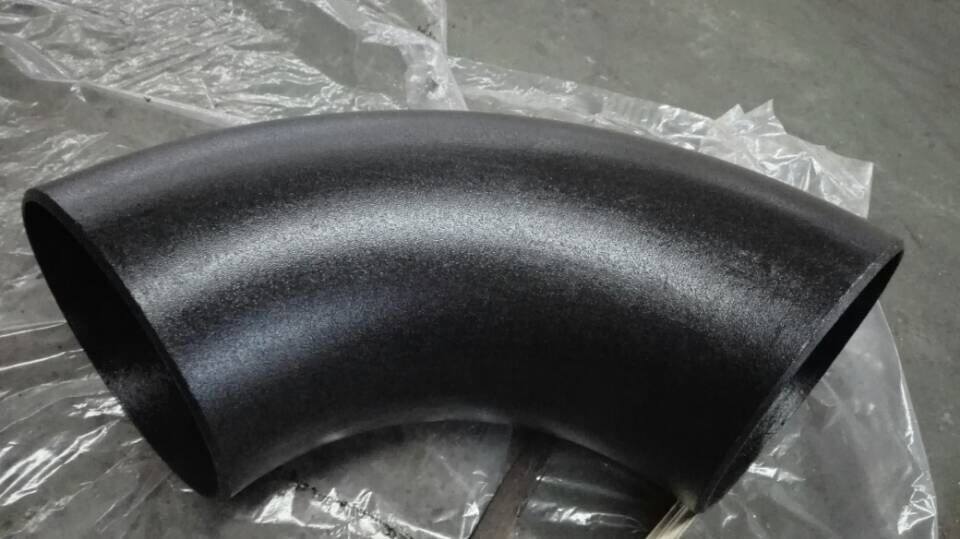

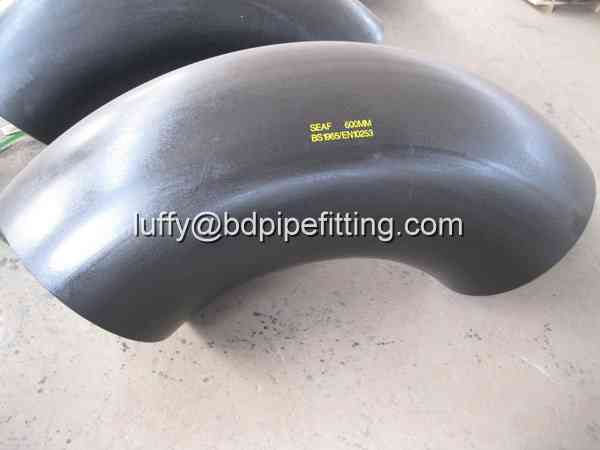

90 Degree Carbon Steel Elbow

90 Degree Carbon Steel Elbow

Bangdong Supply Thread Pipe Fittings,Screwed Pipe Fittings,Butt Welded Pipe Fittings.Carbon Steel Pipes Tubes Manufacturer | Carbon Steel Seamless Pipes, Welded Pipes, Fabricated Pipes, ERW Pipes, EFW Pipes Tubes .ASTM A333 Grade 6 Carbon Pipes | ASTM A106 Grade B, ASTM A53 GRADE B, API 5L Grade B Carbon Steel Seamless Line Pipes.

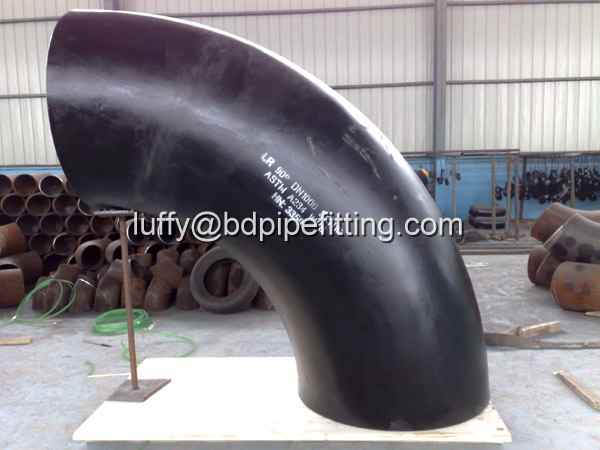

More details of Butt Weld Pipe Elbow :

Buttweld pipe fittings comprises of long radius elbow, Concentric Reducer, eccentric reducers and Tees.They are an important part of industrial piping system to change direction, branch off or to mechanically join equipment to the system. Buttweld fittings are sold in nominal pipe sizes with specified pipe schedule. BW fitting`s dimensions and tolerances are defined as per ASME standard B16.9.
Butt Weld fittings are also called Welded Pipe fittings. These welded fittings in carbon steel and stainless steel offer many advantages compared to threaded and socketweld fittings. The later are only available up to 4-inch nominal size whereas butt weld fittings are available in sizes from ½" to 102".

Elbow: Fittings that change direction in a piping system are called elbows. The directional change is given in degree such as 45 or 90. Long radius 90 degree elbow has the center line of elbow at 1.5 x  NPS from eblow end. 3D elbow has center line at 3 x NPS from elbow end.


 Application Areas:
Gas Plants
Power Plants
Chemical Plants
Petroleum Industry
Metallurgy Industry
Ship-building Industry
Construction Industry

Elbow Grades:
Stainless Steel: ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
Carbon Steel: ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
Alloy Steel: Astm A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Other Metals offered for making Butt Weld Pipe Fittings: Monel, Nickle, Inconel, Hastelloy, Copper, Brass, Titanium , Aluminum elbow



Features:
Made of high grade raw material
Easy fitting
Long lasting
Corrosion resistance
Dimensionally accurate
-Reasonable price.

Delivery:
As per the client's schedule.

Customization:
 Deliver customized products.

Packaging:
Durable and safe packaging.

FORGED FITTINGS

Forged Branch Outlet Fittings as per MSS-SP-97

Product Range

Competitor Range

Ratings

Size available

Sizing Ranges







BUTT-WELD PIPET (BWP)

WELDOLET (WOL)

STD

XS

SCH 160

XXS

1/2" THROUGH 24"

1/2" THROUGH 24"

1/2" THROUGH 8"

1" THROUGH 8"

B/W ELBO PIPET (BEP)

ELBOLET B/W (EOL)

STD

XS

1/2" THROUGH 4"

1/2" THROUGH 4"

B/W LATERAL PIPET (BLP)

LATROLET B/W (LOL)

STD

XS

1/2" THROUGH 4"

1/2" THROUGH 4"

THREADED PIPET (THP)

Threadolet (TOL)

3000#

6000#

1/2" THROUGH 4"

1/2" THROUGH 2"

THREADED ELBO PIPET (TEP)

ELBOLET NPT (EOL)

3000#

6000#

1/2" THROUGH 2"

1/2" THROUGH 2"

THREADED LATERAL PIPET (TLP)

LATROLET NPT (LOL)

3000#

6000#

1/2" THROUGH 2"

1/2" THROUGH 2"

THREADED NIPPLE PIPET (TNP)

NIPOLET NPT (NOL)

3000# /SCH.160

6000#/ XXS

1/2" THROUGH 2"

1/2" THROUGH 2"

SOCKET WELD PIPET (SWP)

SOCKOLET (SOL)

3000#

6000#

1/4" THROUGH 3"

1/2" THROUGH 2"

S/W ELBO-PIPET (SEP)

ELBOLET S/W (EOL)

3000#

6000#

1/2" THROUGH 4"

1/2" THROUGH 4"

S/W LATERAL PIPET (SLP)

LATROLET (LOL)

3000#

6000#

1/2" THROUGH 4"

1/2" THROUGH 4"

PLAIN-END NIPPEL PIPET (PNP)

NIPOLET P/E (NOL)

3000#SCH.80

6000#SCH.106

9000#/XXS

1/2" THROUGH 4"

1/2" THROUGH 4"

1/2" THROUGH 4"



B/W VESSELET (BWV)

SWEEPOLET (SEOL)

TO BE SPECIFIED

1 ½" THROUGH 24"

FLANGED PIPET (FLP)

NOT AVAILABLE

150#RF

300#RF

600#RF

900/1500#RF

2500#RF

1/2" THROUGH 4"

1/2" THROUGH 4"

1/2" THROUGH 2"

1/2" THROUGH 2"

1/2" THROUGH 2"
