Alloy Steel WP22 Elbow,A234 WP9 Concentric Reducer,Large Buttweld Equal Tee
| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CFR,CIF |
| Min. Order: | 1 Piece/Pieces |
Model No.: Pipe Fitting
Brand: Bangdong
Connection: Welding
Shape: Equal
Head Code: Round
Angle: 90 Degree
Wall Thickness: SCH100
Material: Alloy
Technics: Forged
Certification: API
Color: Black
Packaging: Wooden Case or Pallet or as per buyer's requirements
Productivity: 1000pcs/month
Transportation: Ocean,Land,Air,Train/TNT/DHL
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
Certificate: ISO/CE/API
HS Code: 73079300
Port: Tianjin New Port,Beijing Air Port,Zhengzhou Train Station
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Bangdong is Butt Weld Pipe Fitting factory Alloy Steel Fitting stockist , we have good stock of A234Wp11 Elbow , Hot Formed Alloy Steel Elbow , A234WP9 Equal Tee , A234Wp5 Concentric Reducer . Our elbow and other fittings comply with standard Asme B16.9 , if you require other standards , we could make them very good . Special elbows we could draw drawings for your reference .
Bangdong an ISO 9001 certified company that offers innovation and quality in its product line. We are dedicated to the highest degree of quality and standard. We offer premium goods and services for challenging industries. We consider our customers as our priority and guarantee complete product satisfaction.
We are a manufacturer, trader, stockist, supplier and exporter of A234 WPL11 Pipe Fittings which abide by the specifications of ASTM A234, which include wrought Carbon steel as well as Alloy Steel fittings, of seamless and welded construction. Workable under temperatures ranging from moderate to elevated, our A234 WPL11 Crosses ensure better performance in the pressure piping and pressure vessel fabrication applications.
We provide A234 WPL11 Pipe Nipples that are safe to use in low-pressure applications to convey liquids and are available in numerous end connection types and standard and heavy duty specifications for the semiconductor and chemical industry.
Our 100% certified products are carefully built to suit the market demands and requirements.

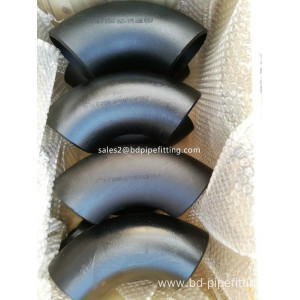

A234 WP11 ALLOY STEEL ELBOW
Alloy Steel Pipe FITTINGS

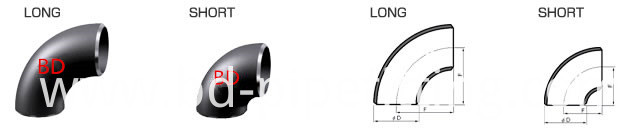

NAME:90 DEGREE BUTT-WELDED ELBOW
MATERIAL:.A234-WP12.A234-WP11.A234-WP5.
SIZE:1/2''-102''
PRESSURE:Sch5-Sch160.XXS.XS.STD
STANDARDS: ISO. ANSI. JIS. DIN GB/T12459.GB/T13401.ASME B16.91
USE: Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc.
Specifications : ANSI/ASME B16.9, B16.28, MSS-SP-43.
Standard : ASTM A234 / ASME SA234
Size : ½"NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS.
Schedules :Sch.40 to Sch.XXs
Type : Seamless / Welded
ASTM A234 WP11 Fittings Specifications
| Specification | ASTM/ ASME A/SA234 WP1, WP11, WP9, WP11, WP22, WP91 |
| Type | Seamless / Welded /Butt welded |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½" NB to 48″ NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Applicable Standards | 1-ASME B 16.9 for large Bore 2-ASME B 16.11 for small Bore (socket welded) 3-ASME B 16.25 for butt weld ends 4-ASME B 16.28 for small radius elbow |
| End Prep: | |
| Grade | C | Mn | Si | S | P | Cr | Mo |
|---|---|---|---|---|---|---|---|
| A234 WP11 | ≤0.15 | ≤0.6 | ≤0.5 | ≤0.04 | ≤0.03 | 4-6 | 0.44-0.65 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
|---|---|---|---|
| A234 WP11 | 415 – 585 | ≥205 | ≥20 |
Features:
Made of high grade raw material
Easy fitting
Long lasting
Corrosion resistance
Dimensionally accurate
-Reasonable price.
Delivery:As per the client's schedule.
Customization:Deliver customized products.
Packaging:Durable and safe packaging.
We have good stock for :
A860 Wphy52 Elbow
Astm A420 Pipe Fitting
A234 Wpb Elbow
Special Elbow
Product Categories : Large Diameter Steel Pipe Fitting > A234WP11 Pipe Fitting
